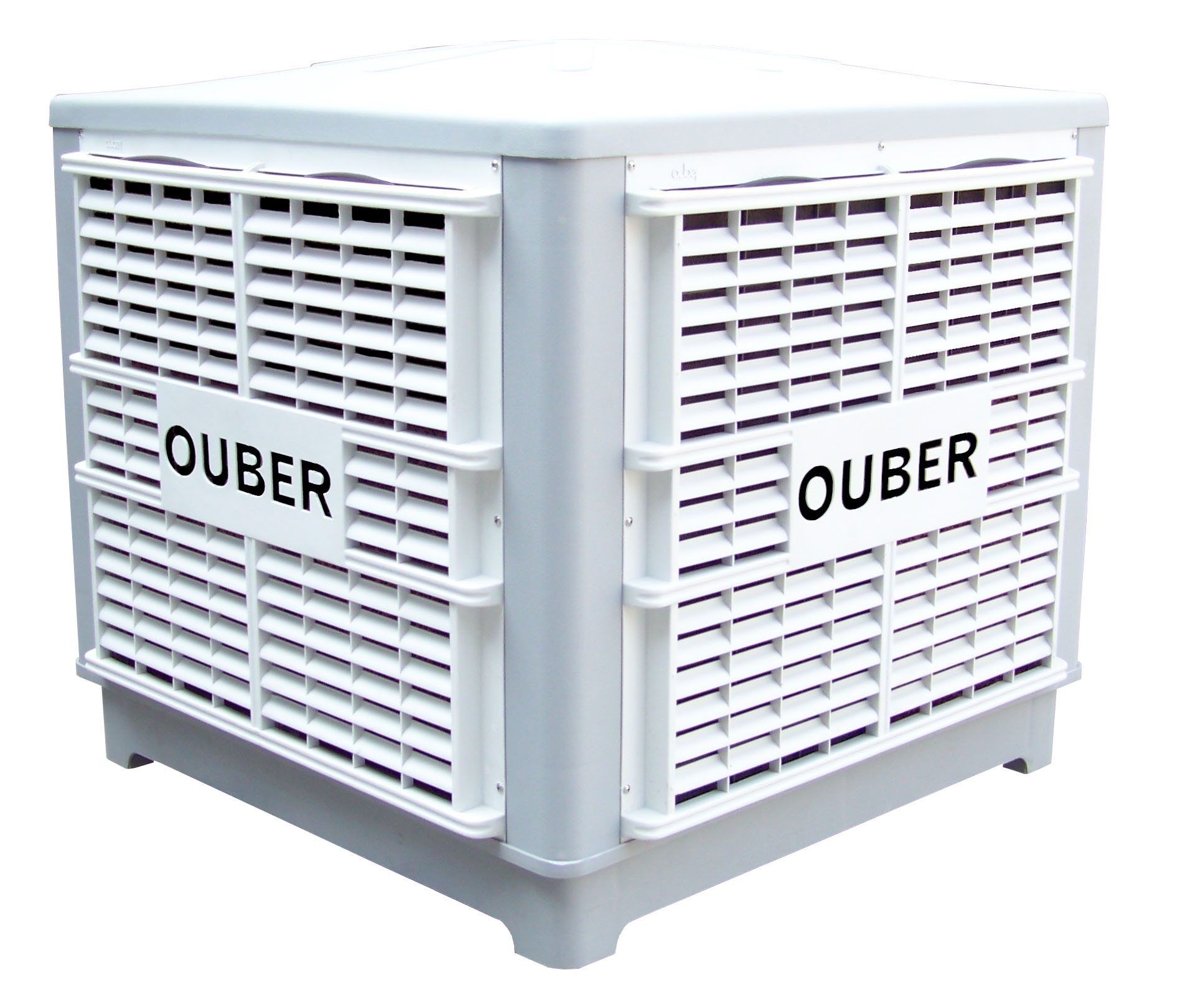

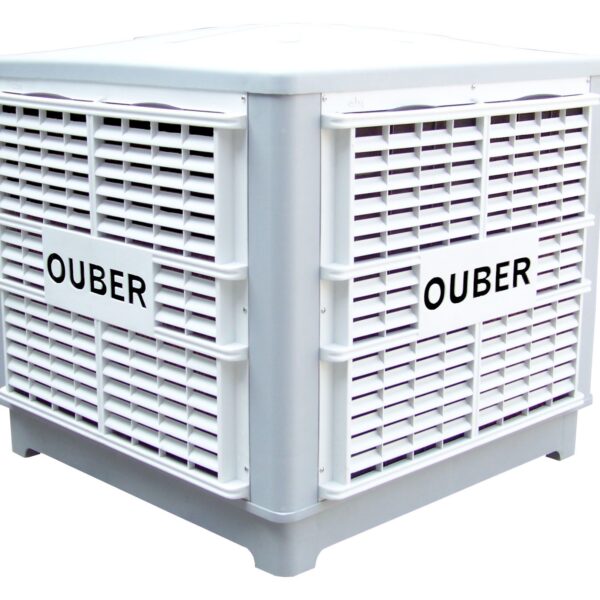

EVAPORATIVE AIR COOLER DOWNDRAFT- IDDAC-670

$2599.00

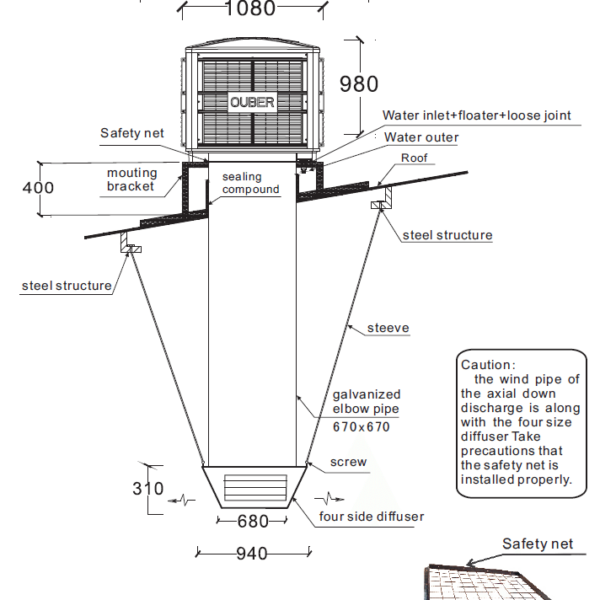

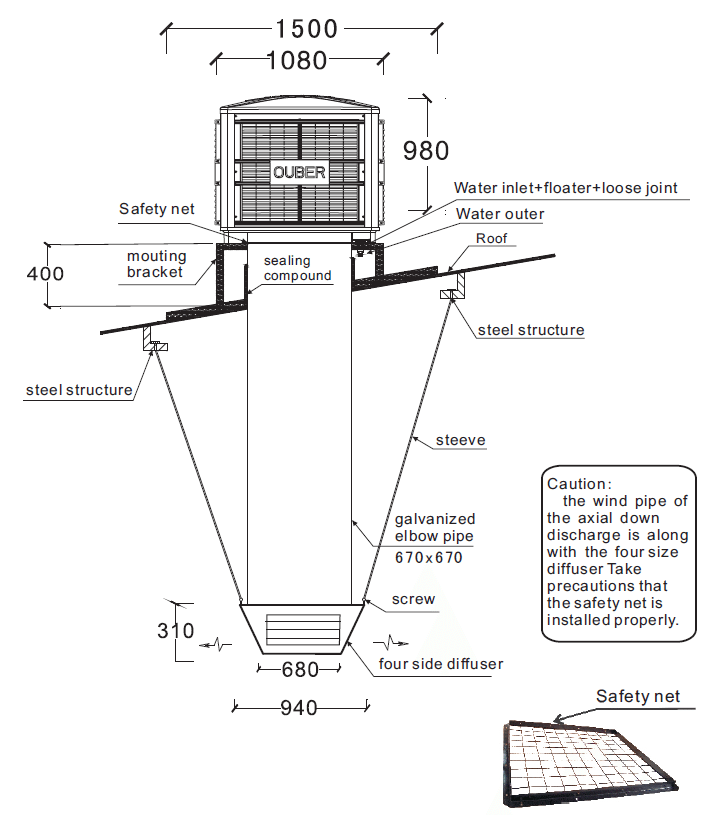

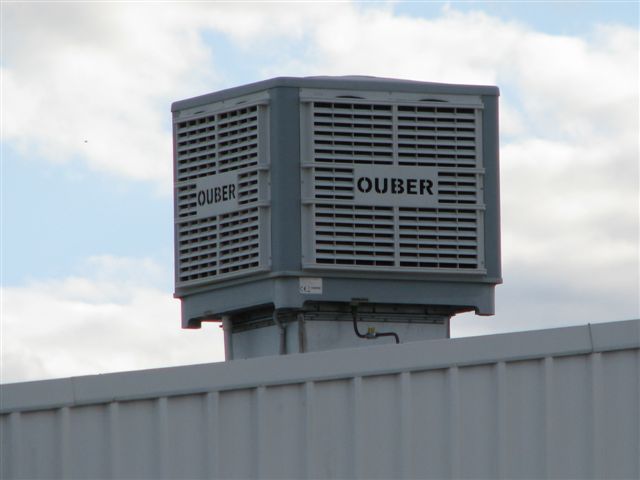

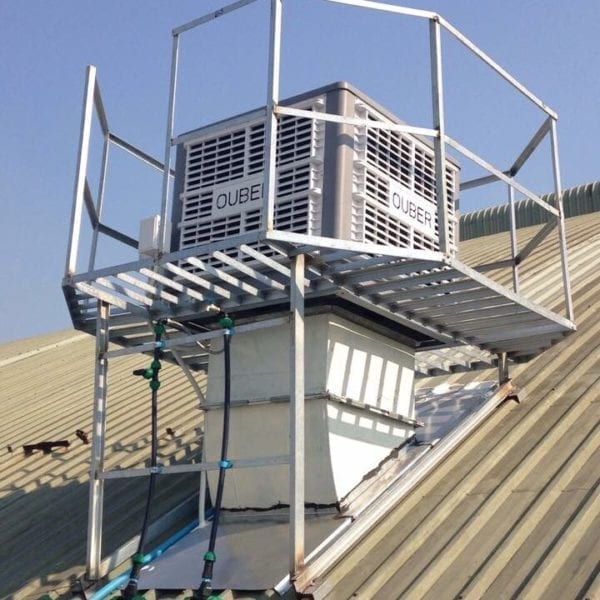

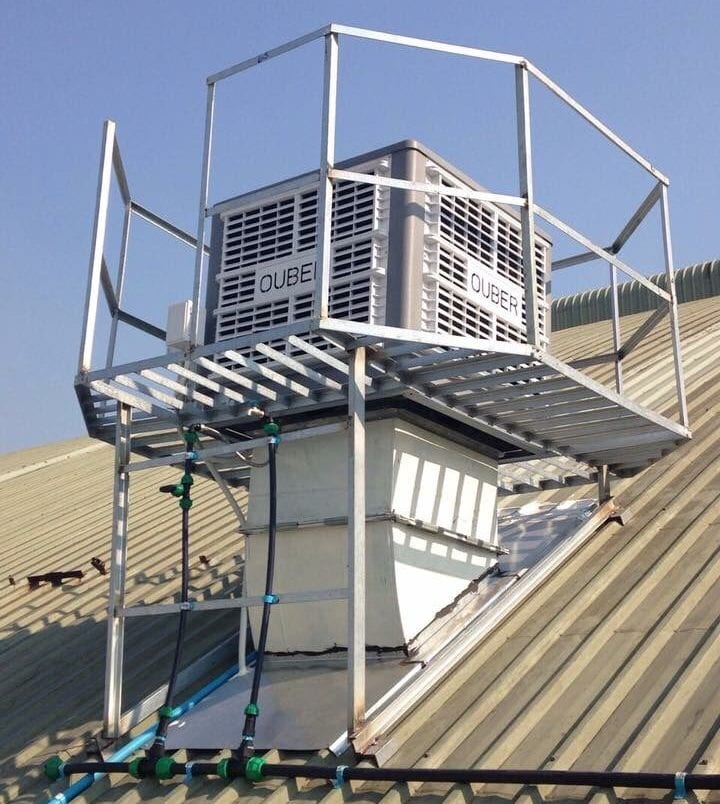

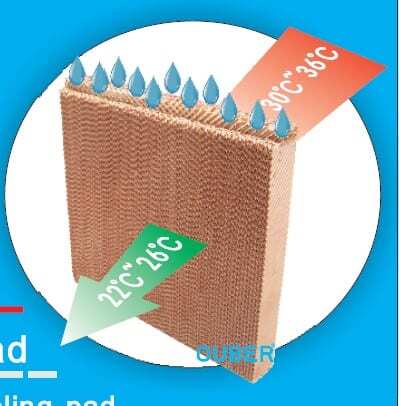

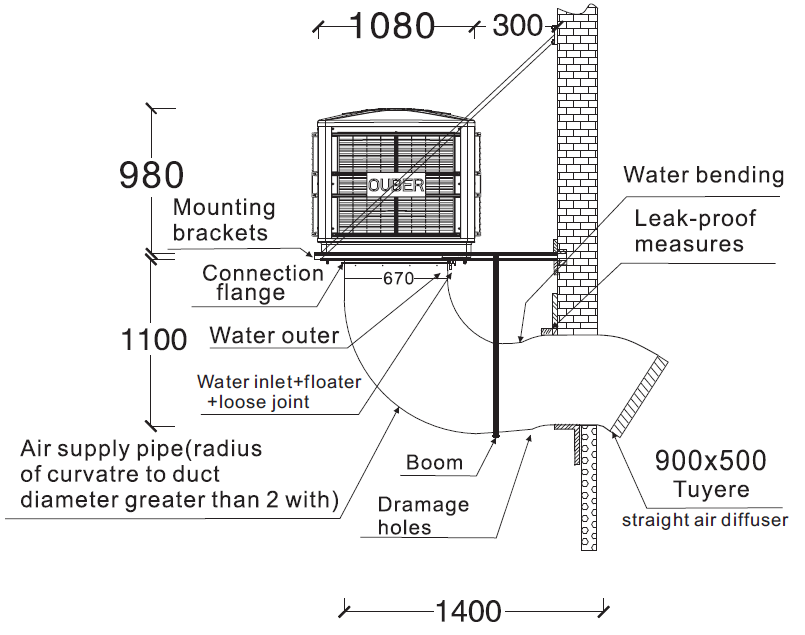

The Ouber IDDAC-670 is an industrial evaporative air conditioner which utilises the natural process of using evaporation to cool the air. The IDDAC-670 uses a low wattage water pump to circulate water from the water tank on to four cooling pads, which in turn becomes very wet. The 1.1KW fan draws air from outside the unit through the damped pads. As it passes through the pads the air is cooled by evaporation. Mounted externally and ducted into the area for cooling, the IDDAC-670 cooler has all 4 sides of air intake to increase the volume of air and a downdraft outlet to which the ducting is connected.

The IDDAC-670 is suitable in many commercial and industrial sites.

  • Downdraft air outlet
  • Low power consumption
  • Variable speed
  • 4 air inlets with Filters
  • Remote Control & Control Panel
  • Auto clean function

Click Here to find out more about the Systems

Part No. IDDAC-670
Fan Type Axial
Air Flow (L/s) 5,000
Noise Level (dBa) < 68
Motor (K/W) 1.1
Voltage/Frequency 220~240/50
Current (A) 7.5
Plug Connection Hard Wired
Cooling Area (m2) up to 150
Air Supply Distance (m) 22
Tank Capacity (L) 25
Water Consumption (L/H) 20
Fan Speed Varirable
Cooling Pad Size (mm) 700*770
Cooling Pad Thickness (mm) 100
Material of Blades ABS
Material of Body PP body
Material of Cooling Pads
Weight 56 / 69
Product Dimensions (mm) 1080*1080*980
Pack Dimensions (mm) 1080*1080*1000

The Ouber IDDAC-670 is an industrial evaporative air conditioner which utilises the natural process of using evaporation to cool the air. The IDDAC-670 uses a low wattage water pump to circulate water from the water tank on to four cooling pads, which in turn becomes very wet. The 1.1KW fan draws air from outside the unit through the damped pads. As it passes through the pads the air is cooled by evaporation. Mounted externally and ducted into the area for cooling, the IDDAC-670 cooler has all 4 sides of air intake to increase the volume of air and a downdraft outlet to which the ducting is connected.

The IDDAC-670 is suitable in many commercial and industrial sites.

  • Downdraft air outlet
  • Low power consumption
  • Variable speed
  • 4 air inlets with Filters
  • Remote Control & Control Panel
  • Auto clean function

Click Here to find out more about the Systems

Weight 69 kg
