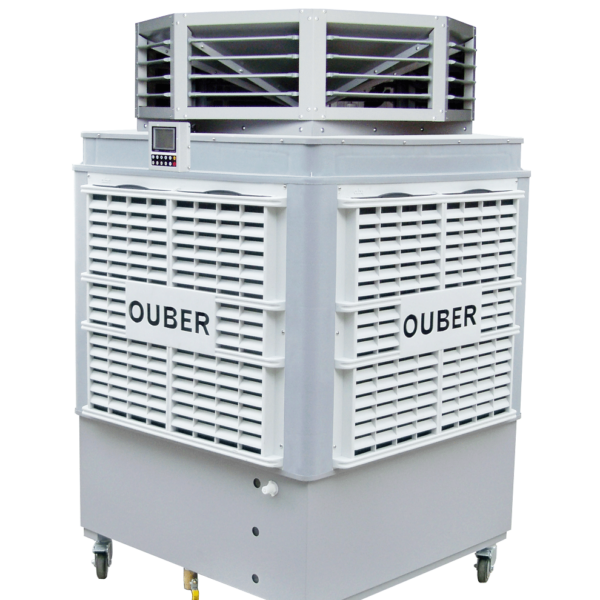

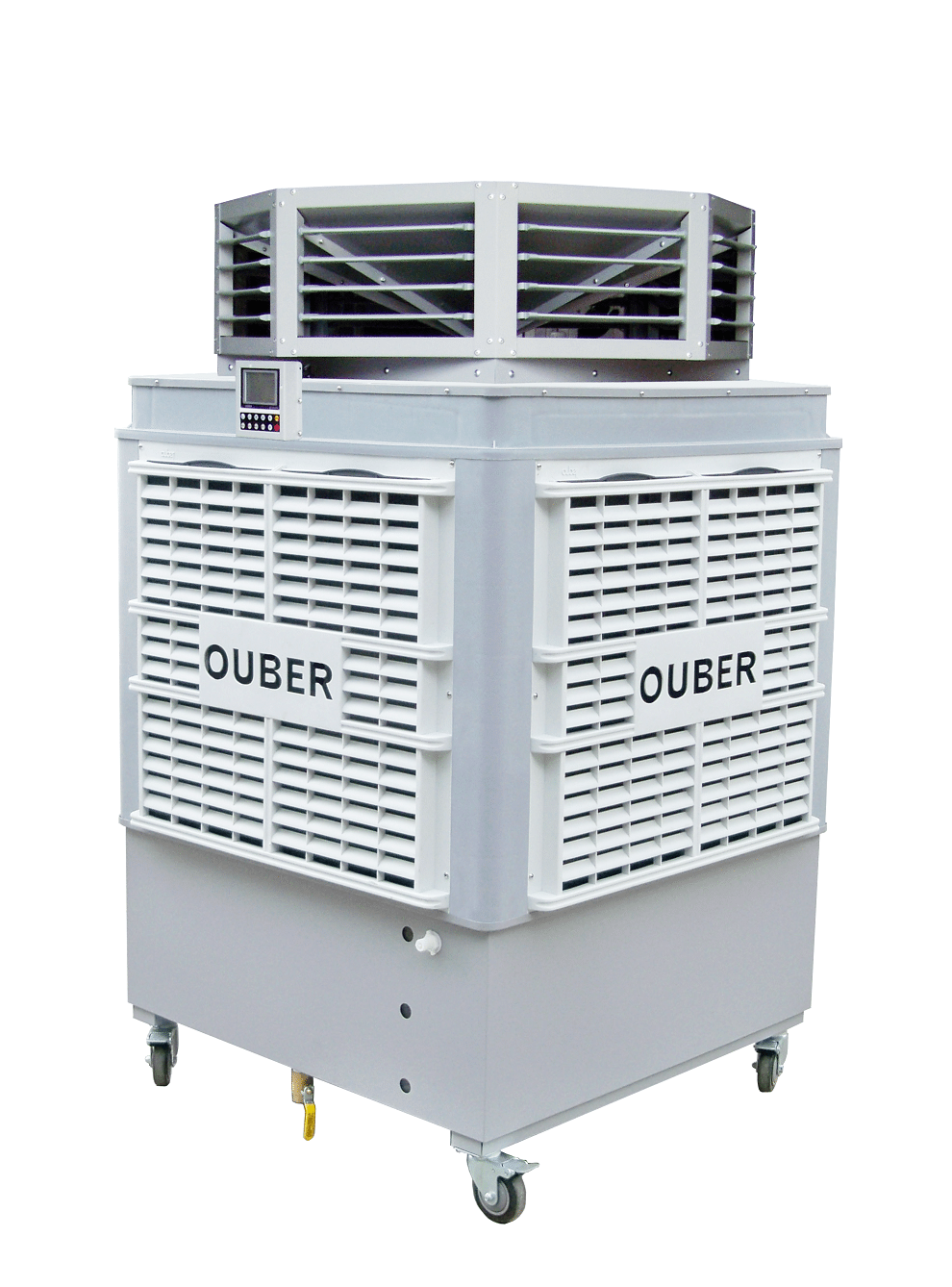

PORTABLE EVAPORATIVE AIR COOLER MULTI DIRECTIONAL DIY KIT – PACIMD-PA

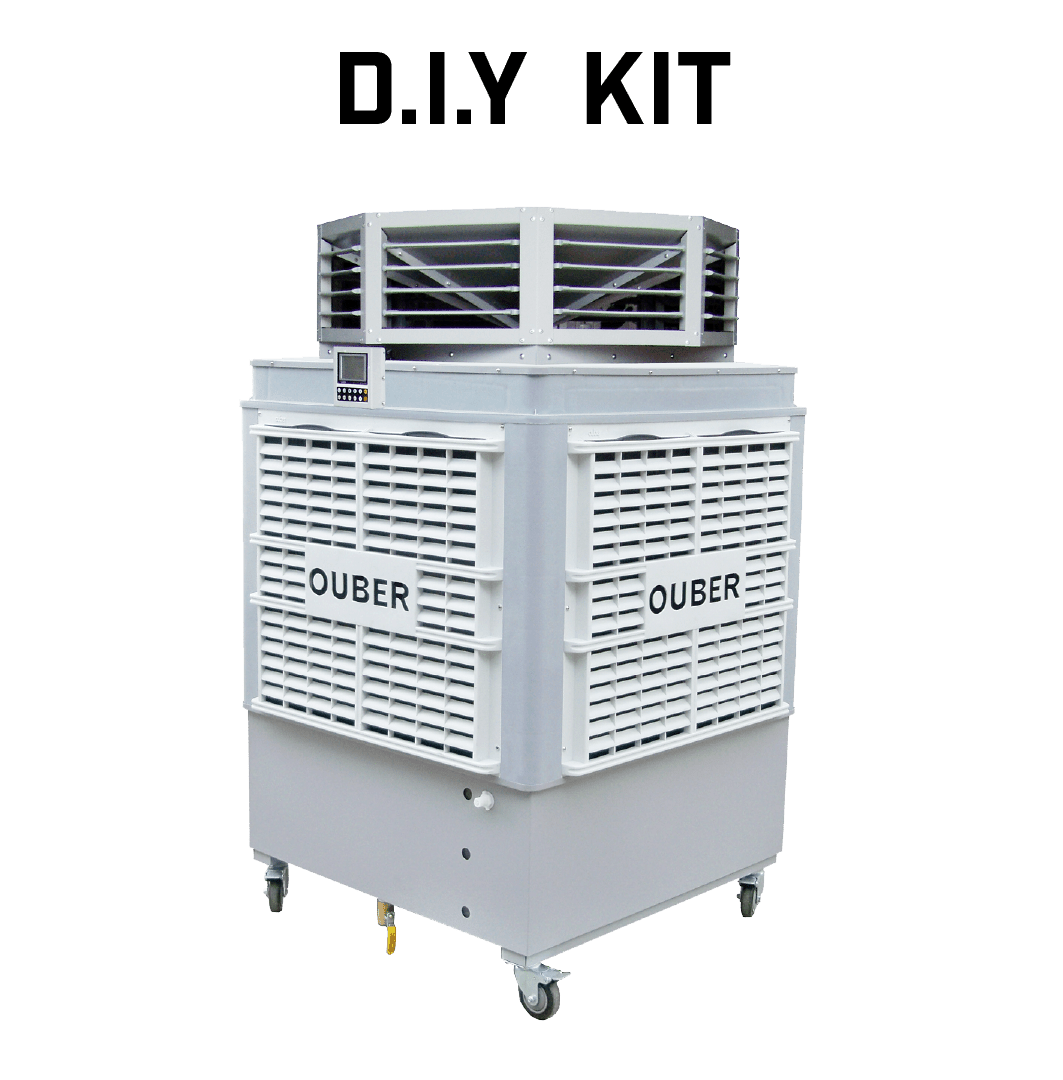

The PACIMD-PA D.I.Y ASSEMBLE KIT option is a great way to save on cost. It is as simple as assembling the air outlet, attaching the castors to the body, attaching the air outlet to the body. Fill up, Plug in and Cool down.
The Ouber PACIMD is an industrial evaporative air cooler which utilises the natural process of using evaporation to cool the air. The PACIMD uses a low wattage water pump to circulate water from the water tank on to four cooling pads, which in turn becomes very wet. The 1.1KW fan draws air from outside the unit through the damped pads. As it passes through the pads the air is cooled by evaporation. The PACIMD is ideal for open areas and is capable of cooling areas of up to 150m² but is also suitable for spot cooling.
-
- Multi direction air outlet
- Automatic swing louvres
- Low power consumption
- Variable speed
- 4 air inlet sections
- Remote control

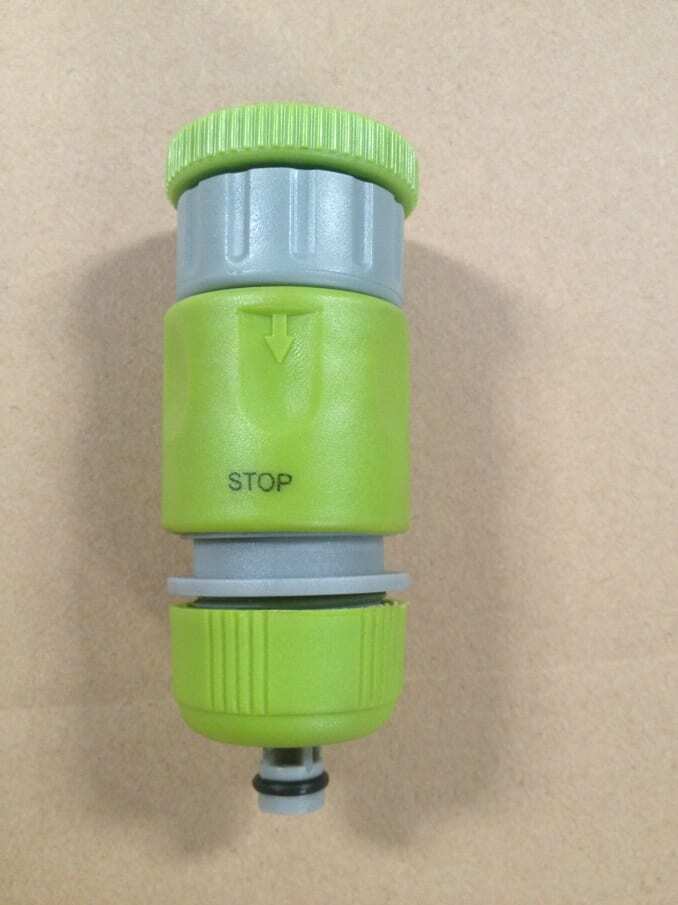

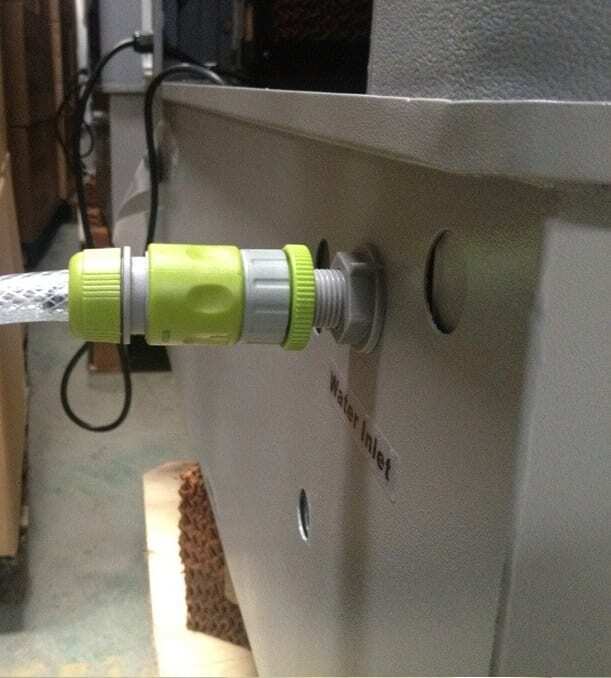

- Can be connected to a regular garden hose for continuous water supply
- Float valve sensor
- Specification
Part No. PACIMD-PA Air Flow (L/s) 5,000 Fan Type Axial Noise Level (dBa) < 68 Motor (K/W) 1.1 Voltage/Frequency 220~240/50 Current (A) 7.5 Plug Connection 3 Pin 10A Cooling Area (m2) up to 150 Air Supply Distance (m) 28 Tank Capacity (L) 300 Water Consumption (L/H) 15 Fan Speed Variable Cooling Pad Size (mm) 700*770 Cooling Pad Thickness (mm) 100 Material of Blades ABS Material of Body PP body + Galvanised Steel Tank Material of Cooling Pads Weight (KG) 89 / 110 Product Dimensions (mm) 1080*1080*1640 Pack Dimensions (mm) - Videos
- Downloads
- Tips
- Use clean water for longevity of unit
- Bore water is not recommended with this unit
- If using bore water, regular maintenance of the water pump, cooling pads & tank will be required
- Review
The PACIMD-PA D.I.Y ASSEMBLE KIT option is a great way to save on cost. It is as simple as assembling the air
The PACIMD-PA D.I.Y ASSEMBLE KIT option is a great way to save on cost. It is as simple as assembling the air outlet, attaching the castors to the body, attaching the air outlet to the body. Fill up, Plug in and Cool down.
The Ouber PACIMD is an industrial evaporative air cooler which utilises the natural process of using evaporation to cool the air. The PACIMD uses a low wattage water pump to circulate water from the water tank on to four cooling pads, which in turn becomes very wet. The 1.1KW fan draws air from outside the unit through the damped pads. As it passes through the pads the air is cooled by evaporation. The PACIMD is ideal for open areas and is capable of cooling areas of up to 150m² but is also suitable for spot cooling.
-
- Multi direction air outlet
- Automatic swing louvres
- Low power consumption
- Variable speed
- 4 air inlet sections
- Remote control
- Can be connected to a regular garden hose for continuous water supply
- Float valve sensor
Weight 120 kg Reviews
