PORTABLE EVAPORATIVE AIR COOLER MD - PACIMD / Industrial Heating Cooling Ventilation Distribution Fans Warehouse Australia / Fanmaster

PORTABLE EVAPORATIVE AIR COOLER MULTI DIRECTIONAL – PACIMD

$4799.00

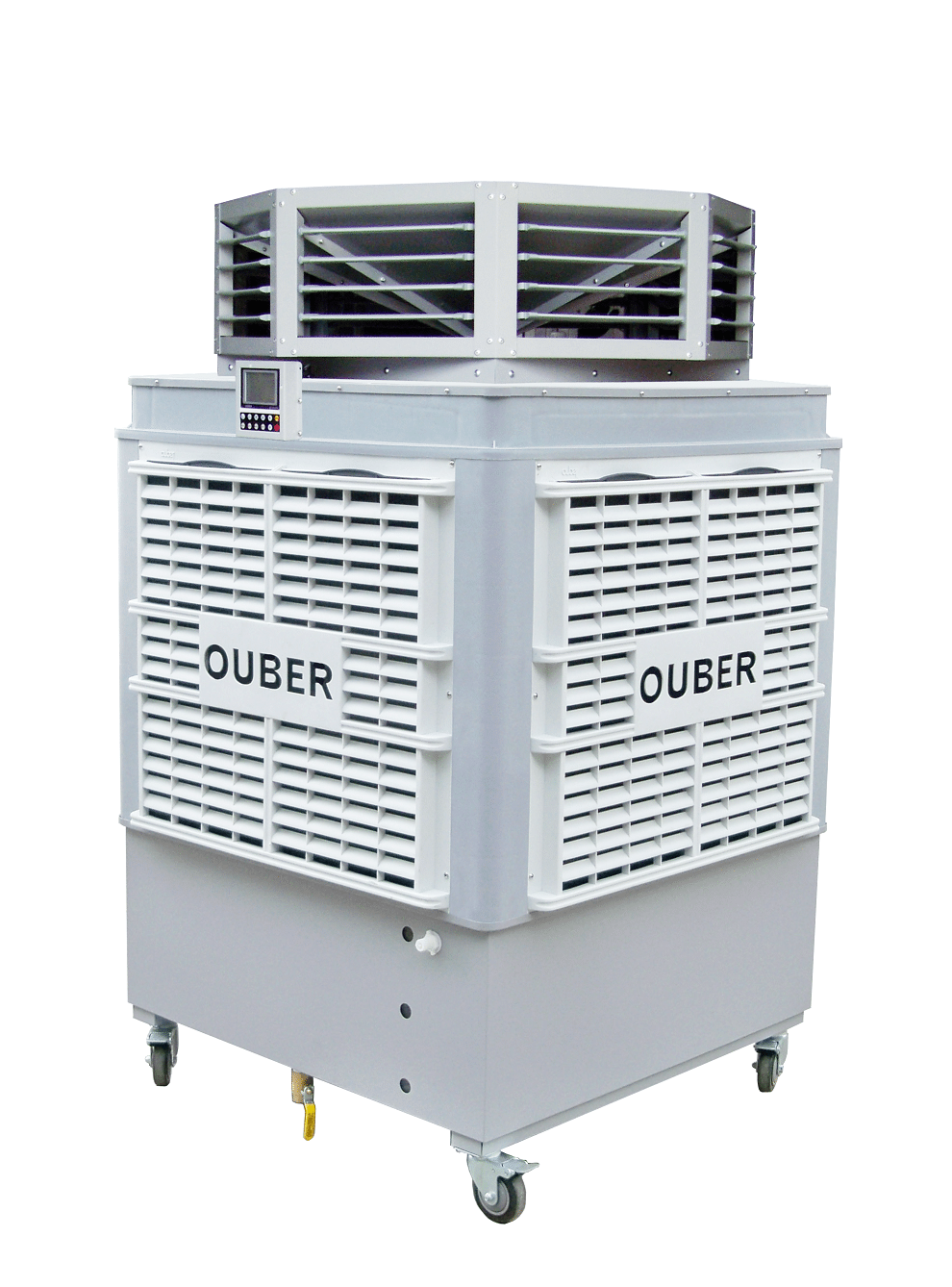

The Ouber PACIMD is an industrial evaporative air cooler which utilises the natural process of using evaporation to cool the air. The PACIMD uses a low wattage water pump to circulate water from the water tank on to four cooling pads, which in turn becomes very wet. The 1.1KW fan draws air from outside the unit through the damped pads. As it passes through the pads the air is cooled by evaporation. The PACIMD is ideal for open areas and is capable of cooling areas of up to 150m² but is also suitable for spot cooling.

  • Multi direction air outlet
  • Low power consumption
  • Variable speed
  • 4 air inlet sections
  • Remote control

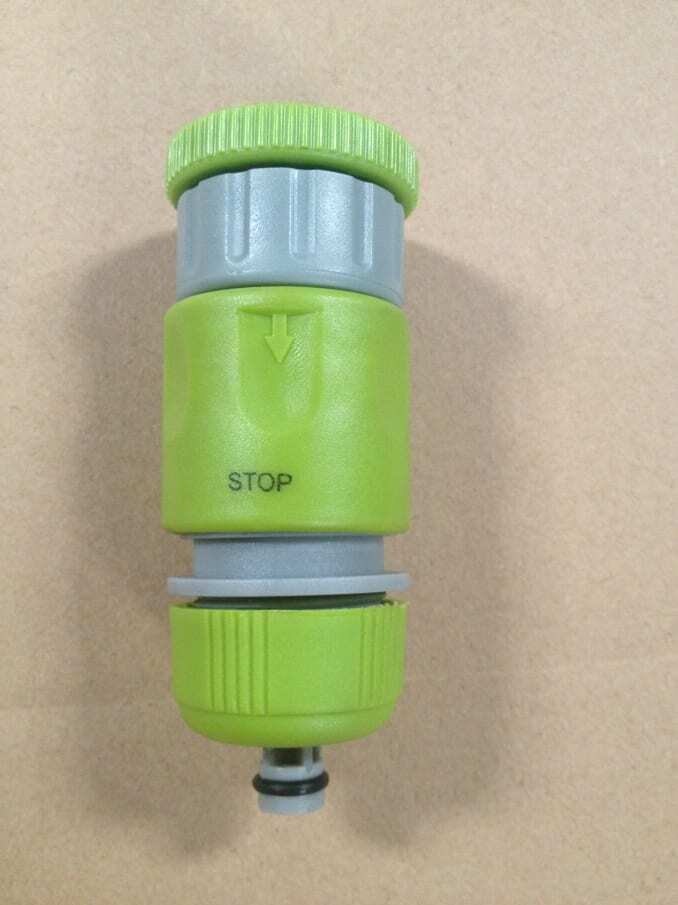

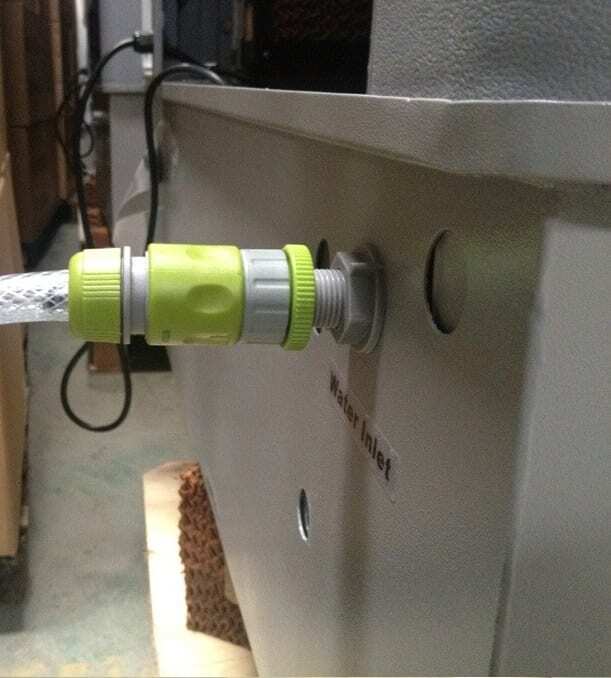

  • Can be connected to a regular garden hose for continuous water supply
  • Float valve sensor
Part No. PACIMD
Air Flow (L/s) 5,000
Fan Type Axial
Noise Level (dBa) < 68
Motor (K/W) 1.1
Voltage/Frequency 220~240/50
Current (A) 7.5
Plug Connection 3 Pin 10A
Cooling Area (m2) up to 150
Air Supply Distance (m) 4 per air outlet (8)
Tank Capacity (L) 300
Water Consumption (L/H) 15
Fan Speed Variable
Cooling Pad Size (mm) 700*770
Cooling Pad Thickness (mm) 100
Material of Blades ABS
Material of Body PP body + Galvanised Steel Tank
Material of Cooling Pads
Weight (KG) 89 / 110
Product Dimensions (mm) 1080*1080*1640
Pack Dimensions (mm) 1080*1080*1800
  • Use clean water for longevity of unit
  • Bore water is not recommended with this unit
  • If using bore water, regular maintenance of the water pump, cooling pads & tank will be required

The Ouber PACIMD is an industrial evaporative air cooler which utilises the natural process of using evaporation to cool the air. The PACIMD uses a low wattage water pump to circulate water from the water tank on to four cooling pads, which in turn becomes very wet. The 1.1KW fan draws air from outside the unit through the damped pads. As it passes through the pads the air is cooled by evaporation. The PACIMD is ideal for open areas and is capable of cooling areas of up to 150m² but is also suitable for spot cooling.

  • Multi direction air outlet
  • Low power consumption
  • Variable speed
  • 4 air inlet sections
  • Remote control
  • Can be connected to a regular garden hose for continuous water supply
  • Float valve sensor
Weight 123 kg

1 review for PORTABLE EVAPORATIVE AIR COOLER MULTI DIRECTIONAL – PACIMD

  1. Matt Jensen – The Comfort Group

    I first saw the Ouber PACIMD units in use at a kids birthday party I took my daughter to, it was one of those indoor inflatable jumping castle worlds situated in a large industrial building. I was blown away by how much they cooled the building, so much so that the brand name stuck in my head and I put forward a proposal to purchase 5 units for our own manufacturing facility. They have made a notable difference and improved staff comfort and productivity for a fraction of the price of air conditioning. Anyone looking at a cost effective cooling solution should consider buying some of these.

    Matt Jensen | Maintenance Supervisor QLD
    The Comfort Group
