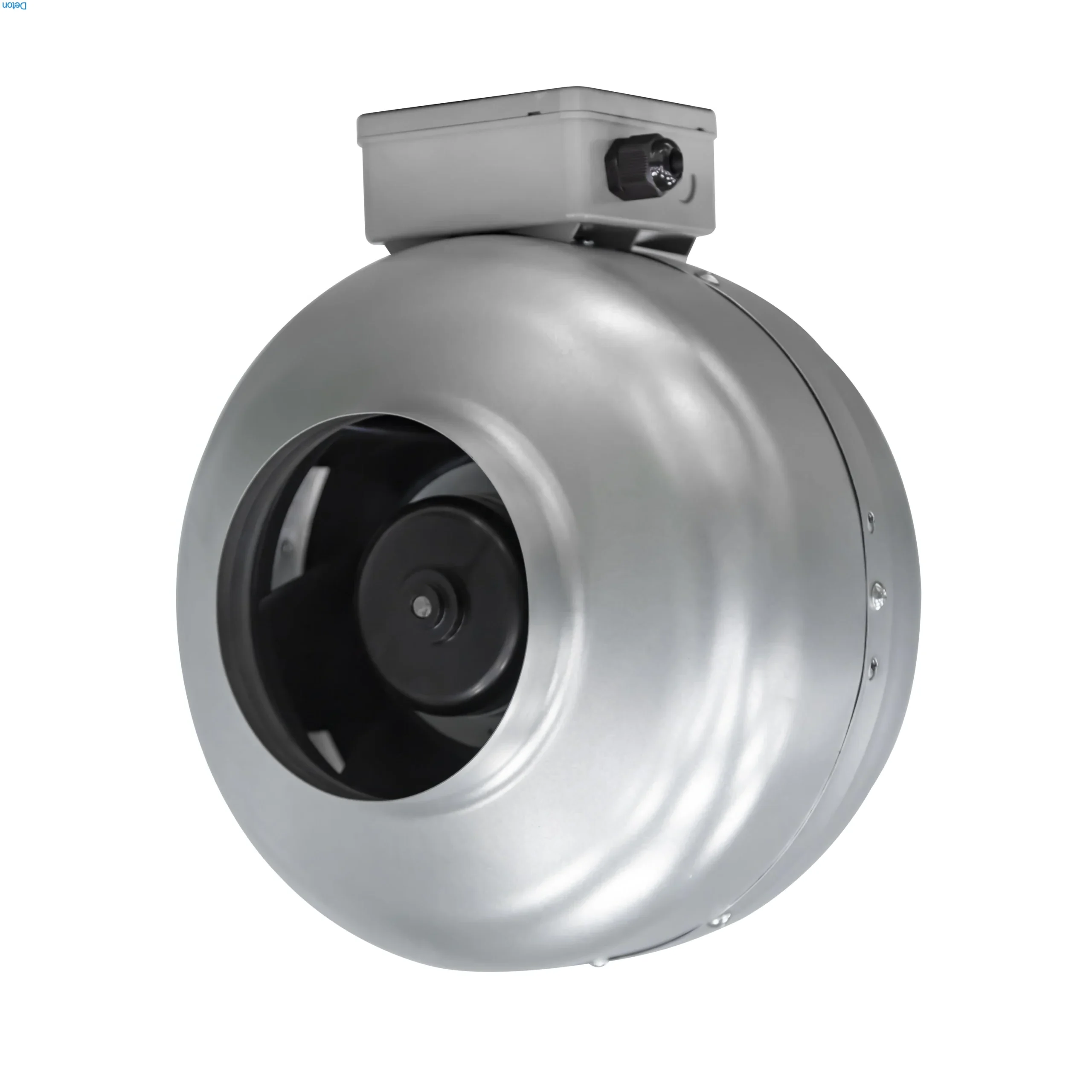

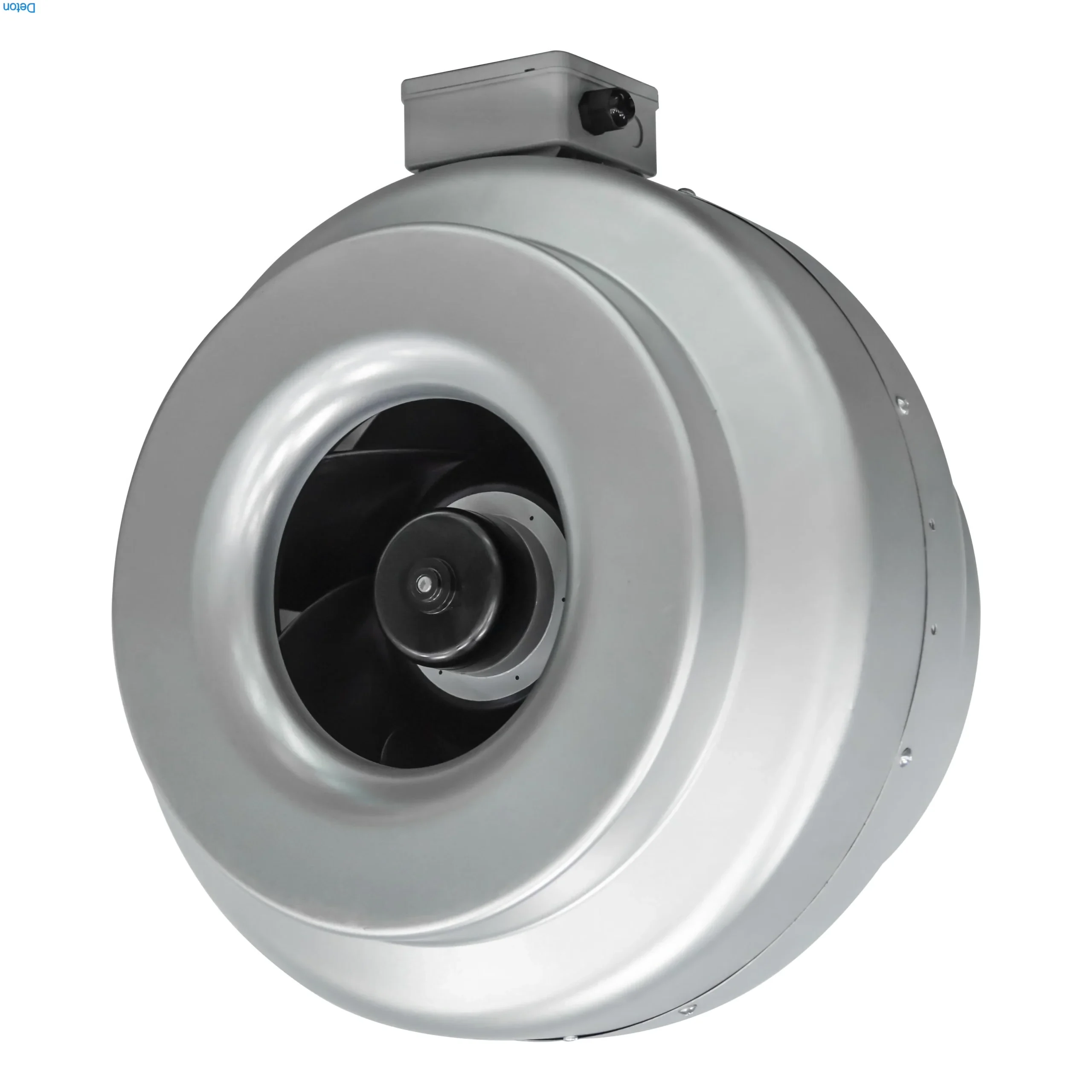

Inline Duct Fans

$279.00

Clear
Store Locator

Our Inline Duct Fans offer exceptional performance in a compact, durable design. Constructed from high-quality galvanised steel, the casing is built to withstand the rigours of various environments, making them ideal for residential, commercial, and even industrial settings.

Engineered for Efficiency and Quiet Operation:

At the heart of our fans lie high-speed, electronically commutated (EC) motors. These innovative motors deliver several key benefits:

  • Energy Efficiency: EC motors use significantly less energy compared to traditional AC motors, translating to cost savings on your electricity bills.
  • Consistent Airflow: Even under demanding conditions, EC motors ensure a powerful and consistent stream of air, effectively removing moisture, odours, and contaminants from your space.
  • Quiet Operation: Despite their power, our inline duct fans are engineered for quiet operation. The optimised inlet design further minimises noise generation, making them suitable for noise-sensitive environments like homes, restaurants, and offices.

Versatile Applications for Optimal Ventilation:

The compact and adaptable design of our inline duct fans makes them ideal for a wide range of applications, including:

  • Residential Ventilation: Effectively remove stale air, moisture, and cooking fumes from bathrooms, laundries, and kitchens, creating a healthier and more comfortable home environment.
  • Commercial Applications: Maintain optimal air quality in restaurants, cafes, hotels, and office buildings by efficiently extracting smoke, odours, and heat from kitchens, smoking areas, and other high-traffic areas.
  • Industrial Applications: Provide powerful ventilation for workshops, warehouses, and industrial processes, removing dust, fumes, and contaminants to ensure a safe and healthy working environment.

Easy Installation and User-Friendly Design:

Our in-line duct fans are designed for ease of installation and maintenance, minimising downtime and disruption. The compact size allows for flexible placement in various spaces, while the simple design simplifies installation and maintenance procedures.

Experience the Difference:

Upgrade your ventilation system with Fanmaster’s Inline Duct Fans and experience the benefits of exceptional performance, quiet operation, and energy efficiency. Contact us today to discuss your specific ventilation needs and find the perfect fan for your application.

Key Features:

  • Durable galvanised steel casing
  • High-efficiency EC motors (energy saving)
  • Quiet operation
  • Versatile applications (residential, commercial, industrial)
  • Compact design
  • Easy installation and maintenance
Part No.  Duct Size mm Voltage Frequency VAC V Power W Current A RPM Airflow m3/h Static Pressure Pa Noise dBa Maximum Efficiency
Point Power W
Maximum Efficiency %
IDF-100E
100 230V 50Hz 10 39 0.35 2800 265 355 62 29.1 27.17
8 25 0.24 2400 235 259 59 21.4 24.85
6 12 0.14 1800 179 148 52 10.8 21.08
IDF-120E
120 230V 50Hz 10 40 0.35 2800 337 357 62 35.5 30.31
8 24 0.23 2400 281 254 59 22.2 28.94
6 12 0.14 1800 147 147 51 11.2 30.58
IDF-150E
150 230V 50Hz 10 42 0.37 2800 469 348 62 42.2 30.58
8 28 0.25 2400 408 251 58 28.4 30.21
6 14 0.15 1800 306 142 50 14.1 26.05
IDF-160E
160 230V 50Hz 10 42 0.37 2800 495 344 61 42.3 31.18
8 26 0.25 2400 428 245 58 29.1 32.93
6 14 0.14 1800 326 142 50 14.4 29.01
IDF-200E
200 230V 50Hz 10 112 0.89 2850 989 566 68 128.3 41.67
8 66 0.55 2400 847 394 63 79.5 41.81
6 30 0.26 1800 612 219 56 34.1 38.87
IDF-250E
250 230V 50Hz 10 118 0.93 2850 1071 581 68 128.4 44.12
8 70 0.58 2400 887 411 64 84.9 43.63
6 31 0.28 1800 653 226 57 53.3 40.52
IDF-310E 310 230V 50Hz 10 128 0.98 2750 1377 710 71 126.4 46.73
8 82 0.67 2400 1173 497 68 125.7 45.56
6 35 0.31 1800 887 273 60 53.3 44.63



Our Inline Duct Fans offer exceptional performance in a compact, durable design. Constructed from high-quality galvanised steel, the casing is built to withstand the rigours of various environments, making them ideal for residential, commercial, and even industrial settings.

Engineered for Efficiency and Quiet Operation:

At the heart of our fans lie high-speed, electronically commutated (EC) motors. These innovative motors deliver several key benefits:

  • Energy Efficiency: EC motors use significantly less energy compared to traditional AC motors, translating to cost savings on your electricity bills.
  • Consistent Airflow: Even under demanding conditions, EC motors ensure a powerful and consistent stream of air, effectively removing moisture, odours, and contaminants from your space.
  • Quiet Operation: Despite their power, our inline duct fans are engineered for quiet operation. The optimised inlet design further minimises noise generation, making them suitable for noise-sensitive environments like homes, restaurants, and offices.

Versatile Applications for Optimal Ventilation:

The compact and adaptable design of our inline duct fans makes them ideal for a wide range of applications, including:

  • Residential Ventilation: Effectively remove stale air, moisture, and cooking fumes from bathrooms, laundries, and kitchens, creating a healthier and more comfortable home environment.
  • Commercial Applications: Maintain optimal air quality in restaurants, cafes, hotels, and office buildings by efficiently extracting smoke, odours, and heat from kitchens, smoking areas, and other high-traffic areas.
  • Industrial Applications: Provide powerful ventilation for workshops, warehouses, and industrial processes, removing dust, fumes, and contaminants to ensure a safe and healthy working environment.

Easy Installation and User-Friendly Design:

Our in-line duct fans are designed for ease of installation and maintenance, minimising downtime and disruption. The compact size allows for flexible placement in various spaces, while the simple design simplifies installation and maintenance procedures.

Experience the Difference:

Upgrade your ventilation system with Fanmaster’s Inline Duct Fans and experience the benefits of exceptional performance, quiet operation, and energy efficiency. Contact us today to discuss your specific ventilation needs and find the perfect fan for your application.

Key Features:

  • Durable galvanised steel casing
  • High-efficiency EC motors (energy saving)
  • Quiet operation
  • Versatile applications (residential, commercial, industrial)
  • Compact design
  • Easy installation and maintenance
Weight N/A
Size

100mm, 120mm, 150mm, 160mm, 200mm, 250mm, 310mm
