CENTRIFUGAL ROOF FANS – DOWNBLAST
Stock Due: ETA Mid January 2025

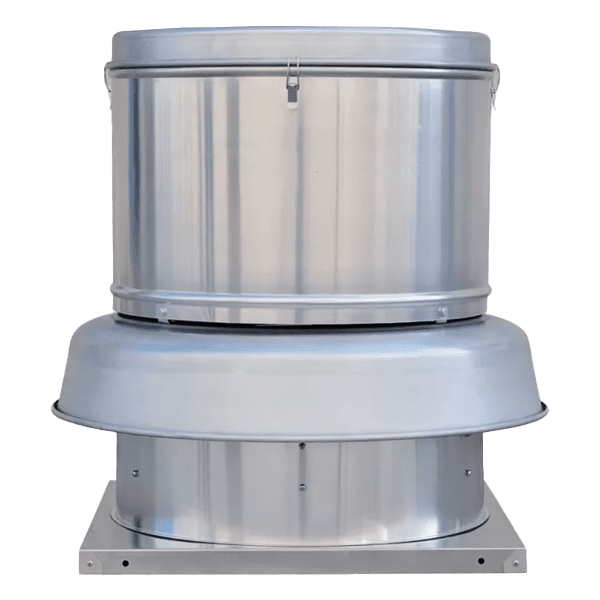

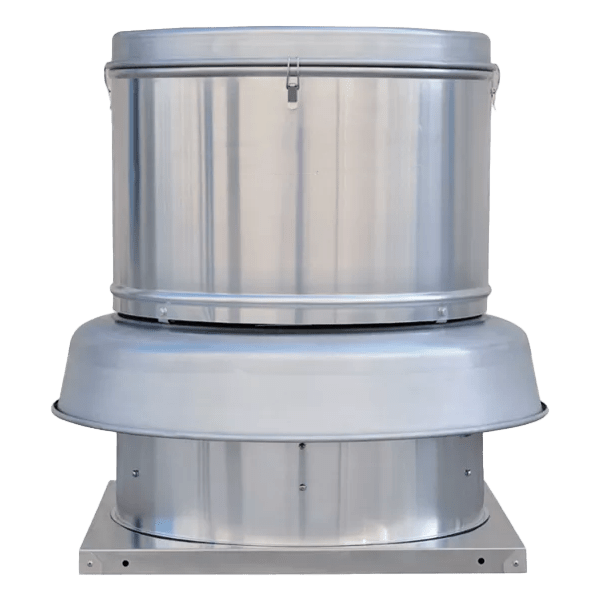

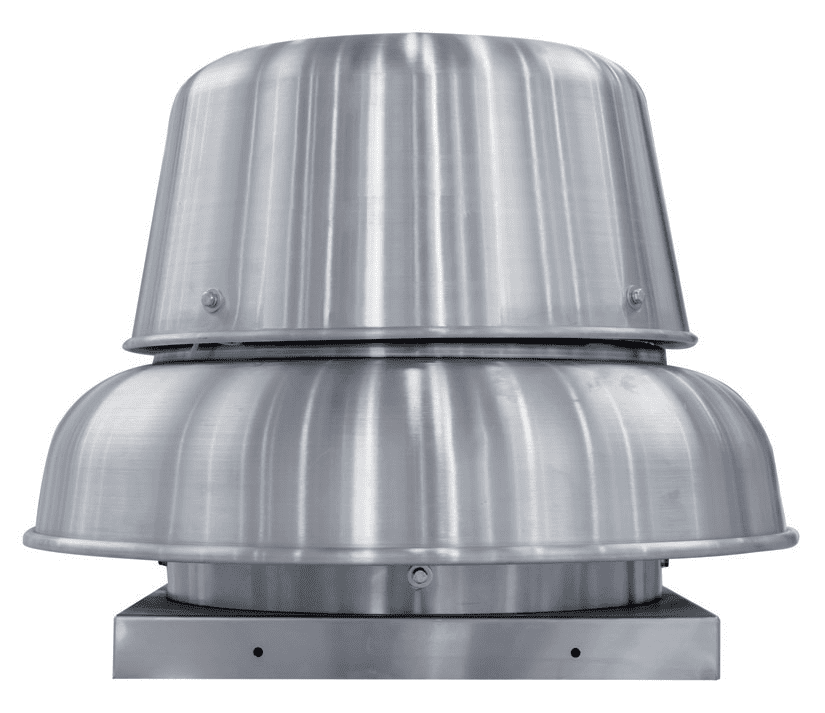

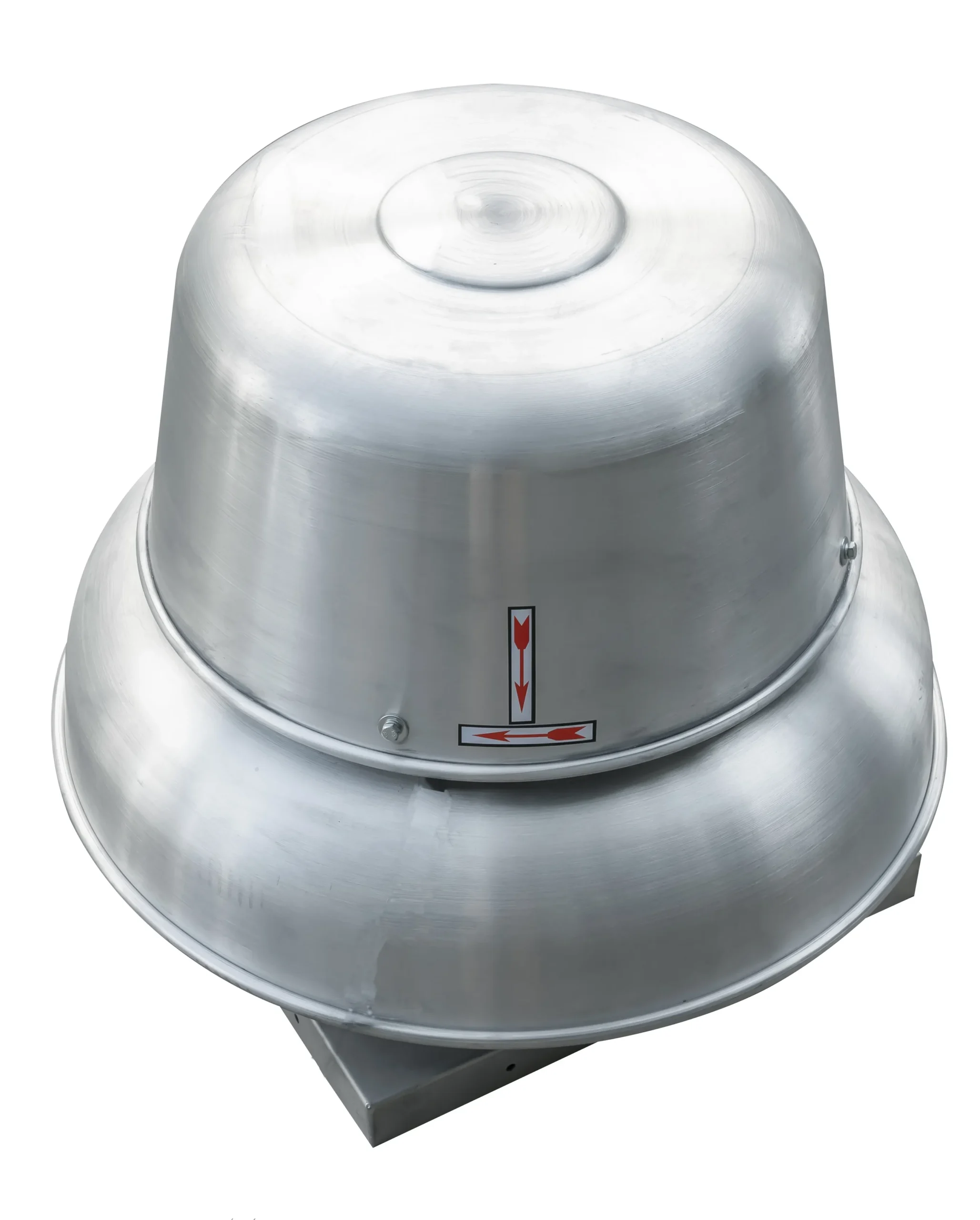

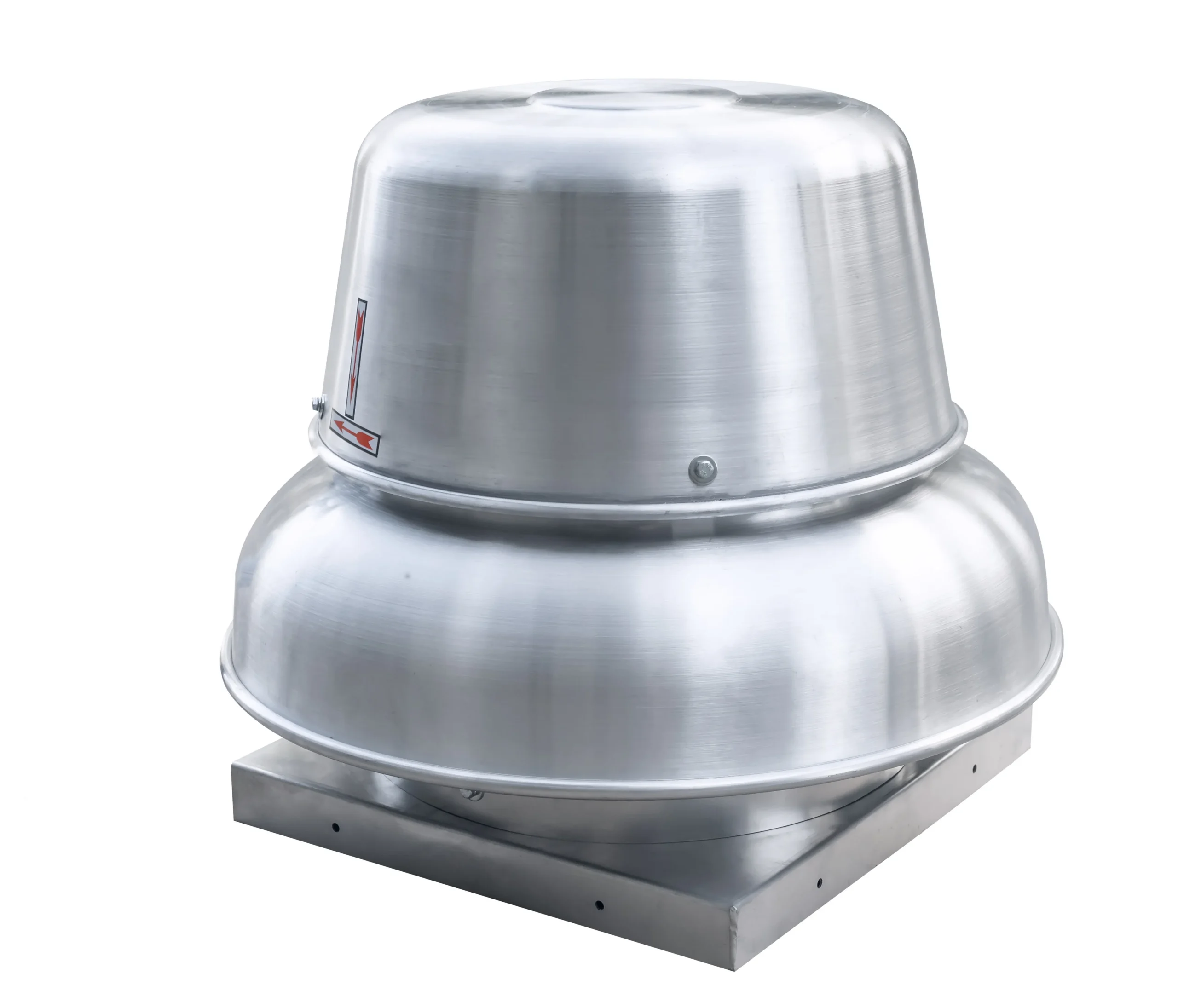

Fanmaster Centrifugal Roof Fans: Powerful Ventilation Solutions
Our high-performance belt-driven centrifugal roof exhaust fan is designed to efficiently remove air from buildings and structures.
This robust fan is ideal for general clean air applications where downward discharge is required, such as industrial facilities, commercial buildings, and mining operations. Its durable spun aluminium housing provides exceptional resistance to corrosion and weathering, ensuring long-lasting performance even in harsh outdoor environments.
Key Features:
One-piece spinning fan cover: Robust and resistant to high wind loads.
Anti-corrosion galvanised steel plate: Provides durable support for the drive mechanism.
Stepped flashing: Prevents water seepage for reliable operation.
Galvanised bird-proof net: Protects the fan from obstructions and contaminants.
Applications:
Ideal for installation on the roofs of industrial and mining plants, civil buildings, shopping malls, and other venues where efficient extraction and exhaust are required.
- Specifications
Part No. Size mm Motor kW Voltage/Hz RPM Airflow m3/h RFCD-200-120 200 0.12 415V / 50/Hz 1380/1650 700/870 RFCD-260-180 260 0.18 415V / 50/Hz 1380/1650 1204/1440 RFCD-320-250 320 0.25 415V / 50/Hz 1380/1650 2007/2400 RFCD-360-55 360 0.55 415V / 50/Hz 1380/1650 3386/4200 RFCD-500-22 500 2.2 415V / 50/Hz 1450/1740 9423/10,722 - Downloads
Manual
- Review
Fanmaster Centrifugal Roof Fans: Powerful Ventilation Solutions Our high-performance belt-driven centrifugal roof exhaust fan is designed to efficiently remove air from buildings
Fanmaster Centrifugal Roof Fans: Powerful Ventilation Solutions
Our high-performance belt-driven centrifugal roof exhaust fan is designed to efficiently remove air from buildings and structures.
This robust fan is ideal for general clean air applications where downward discharge is required, such as industrial facilities, commercial buildings, and mining operations. Its durable spun aluminium housing provides exceptional resistance to corrosion and weathering, ensuring long-lasting performance even in harsh outdoor environments.
Key Features:
One-piece spinning fan cover: Robust and resistant to high wind loads.
Anti-corrosion galvanised steel plate: Provides durable support for the drive mechanism.
Stepped flashing: Prevents water seepage for reliable operation.
Galvanised bird-proof net: Protects the fan from obstructions and contaminants.Applications:
Ideal for installation on the roofs of industrial and mining plants, civil buildings, shopping malls, and other venues where efficient extraction and exhaust are required.Weight 75 kg Size 200mm, 260mm, 320mm, 360mm, 500mm
