Evaporative Air Conditioning

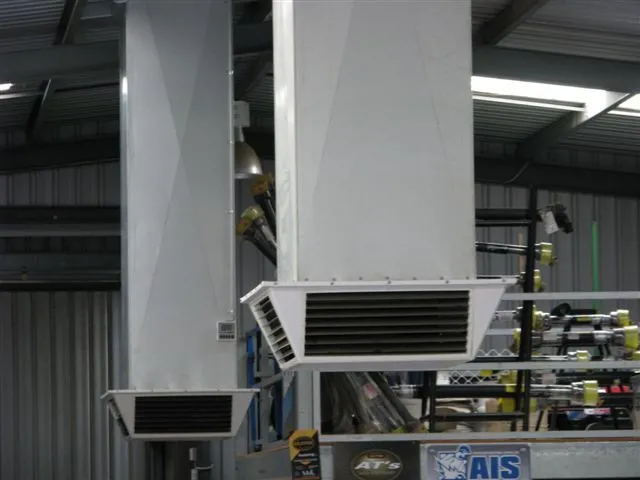

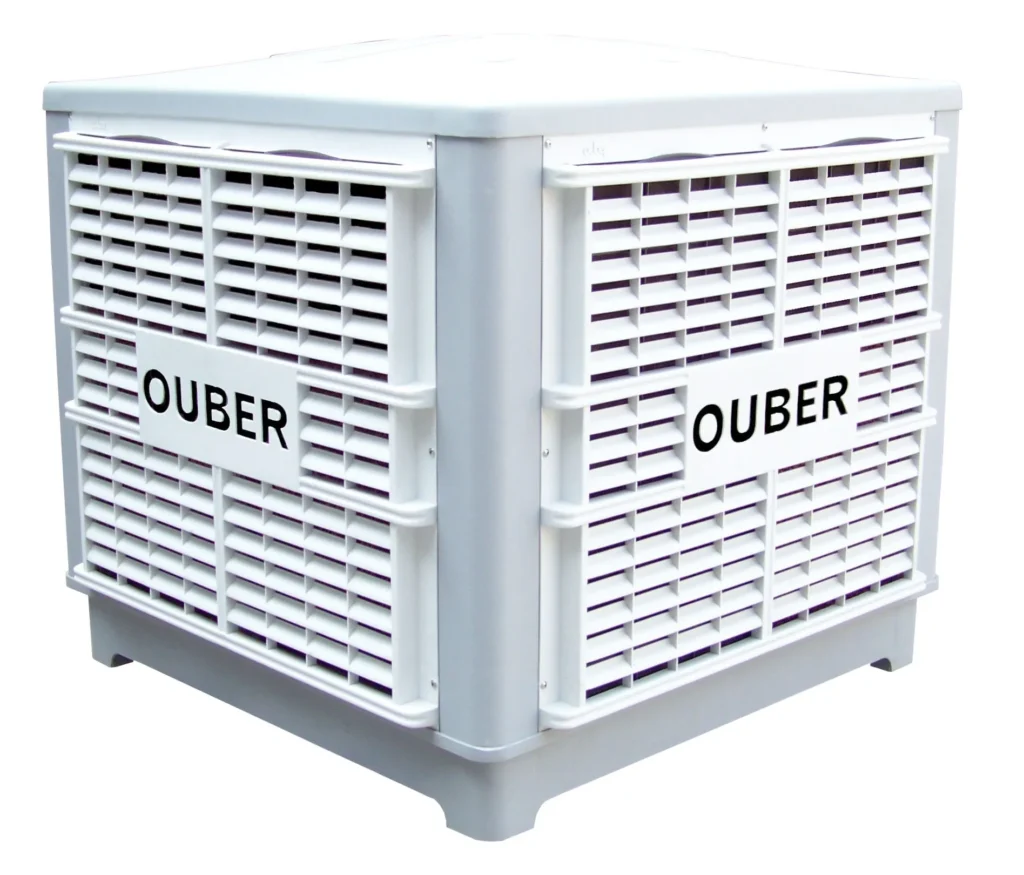

The Ouber IDDAC-670 is an industrial evaporative air conditioner which utilises the natural process of using evaporation to cool the air. The IDDAC-670 uses a low wattage water pump to circulate water from the water tank on to four cooling pads, which in turn becomes very wet. The 1.1KW fan draws air from outside the unit through the damped pads. As it passes through the pads the air is cooled by evaporation. Mounted externally and ducted into the area for cooling, the IDDAC-670 cooler has all 4 sides of air intake to increase the volume of air and a downdraft outlet to which the ducting is connected.

The IDDAC-670 is suitable in many commercial and industrial sites.

  • Downdraft air outlet
  • Low power consumption
  • Variable speed
  • 4 air inlets with Filters

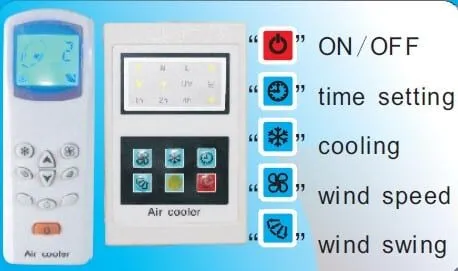

  • Remote Control & Control Panel
  • Auto clean function

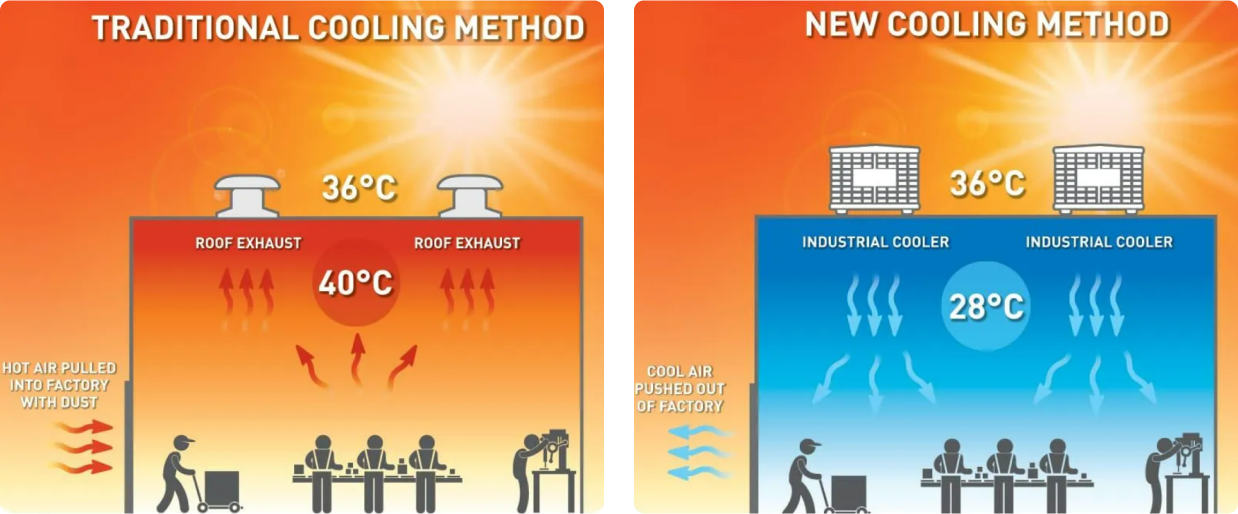

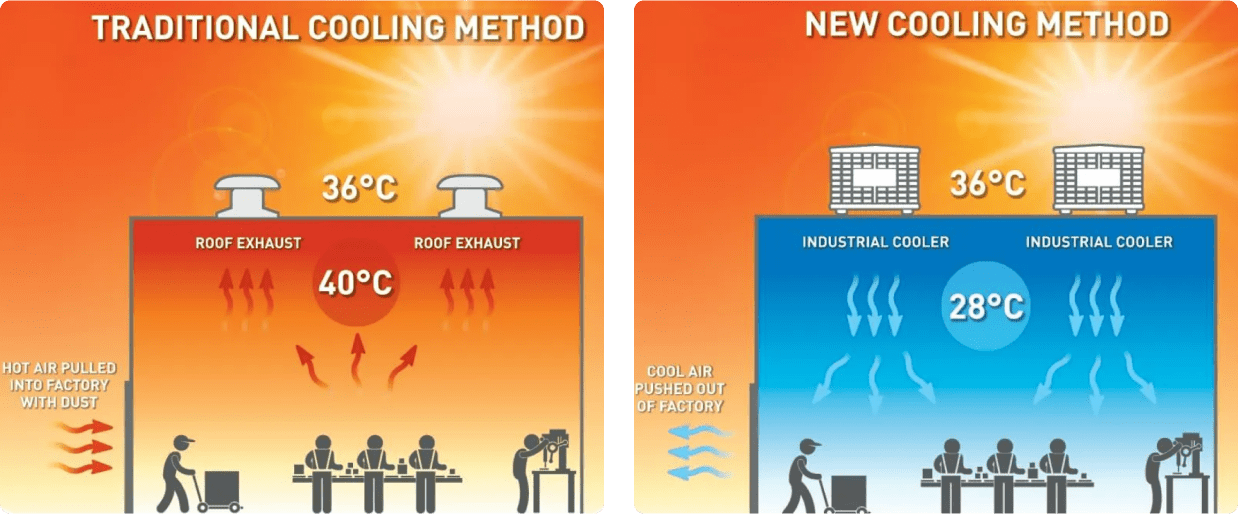

Evaporative Air Conditoning vs Traditional Cooling Method

Evaporative Air Conditioning provides cool fresh air unlike the traditional method of cooling or removing of heat, all you are doing is bringing in hot dusty air!

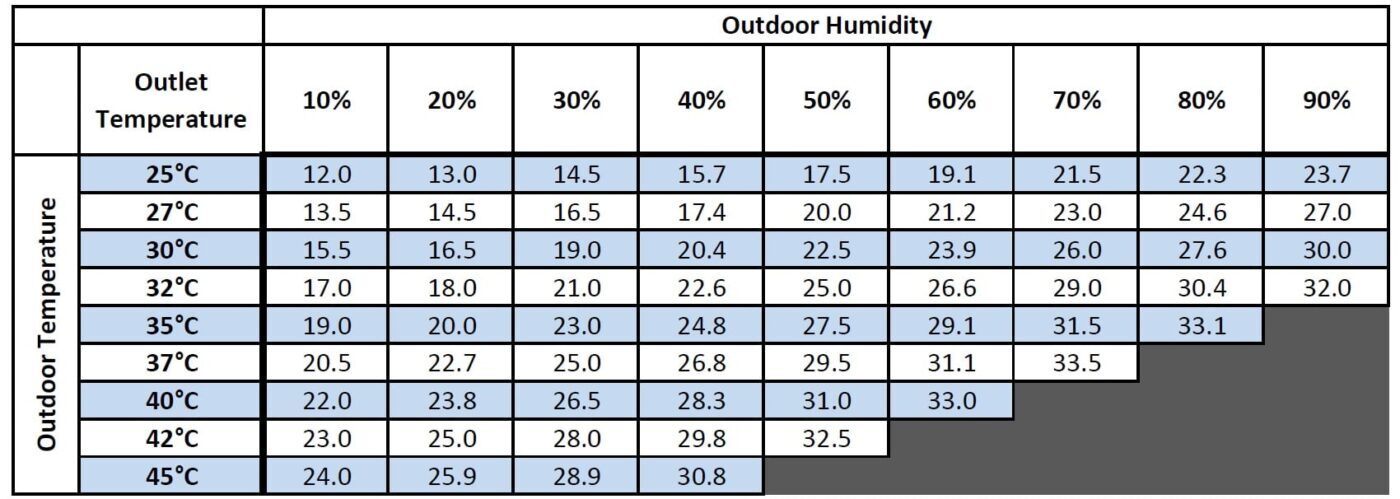

TEMPERATURE DROP CHART GUIDE

Use this temperature drop chart to give you an idea of the cooling benefits when using Evaporative Air Conditioning.

Systems

System 1

2 x IDDAC-670 Cools up to 300m2. Starting from $4,700

Enquire Now

System 2

4 x IDDAC-670. Cools up to 600m2. Starting from $9,400

Enquire Now

System 3

6 x IDDAC-670. Cools up to 900m2. Starting from $14,100

Enquire Now

System 4

8 x IDDAC-670. Cools up to 1200m2. Starting from $18,800

Enquire Now

Use this calculator to work out
how many units you need for your space

Input your Details

*Calculation is based on a 5m height. If your roof exceeds this height is is recommended to add drop down ducting to meet the 5m mark or wall amount installation

*Please be advised this calculator is a guide only

Result :

Enter your details in the form to the left to see your results

  • Total area m2:
  • Total volume m3:
  • Air Changes:
  • Total required airflow m3:
  • Evaps Required:
Get a Quote
*Please note openings such as roller doors, doors & windows are required with evaporative cooling. For best results for cool air to be distributed more effectively, exhaust fans would be required
