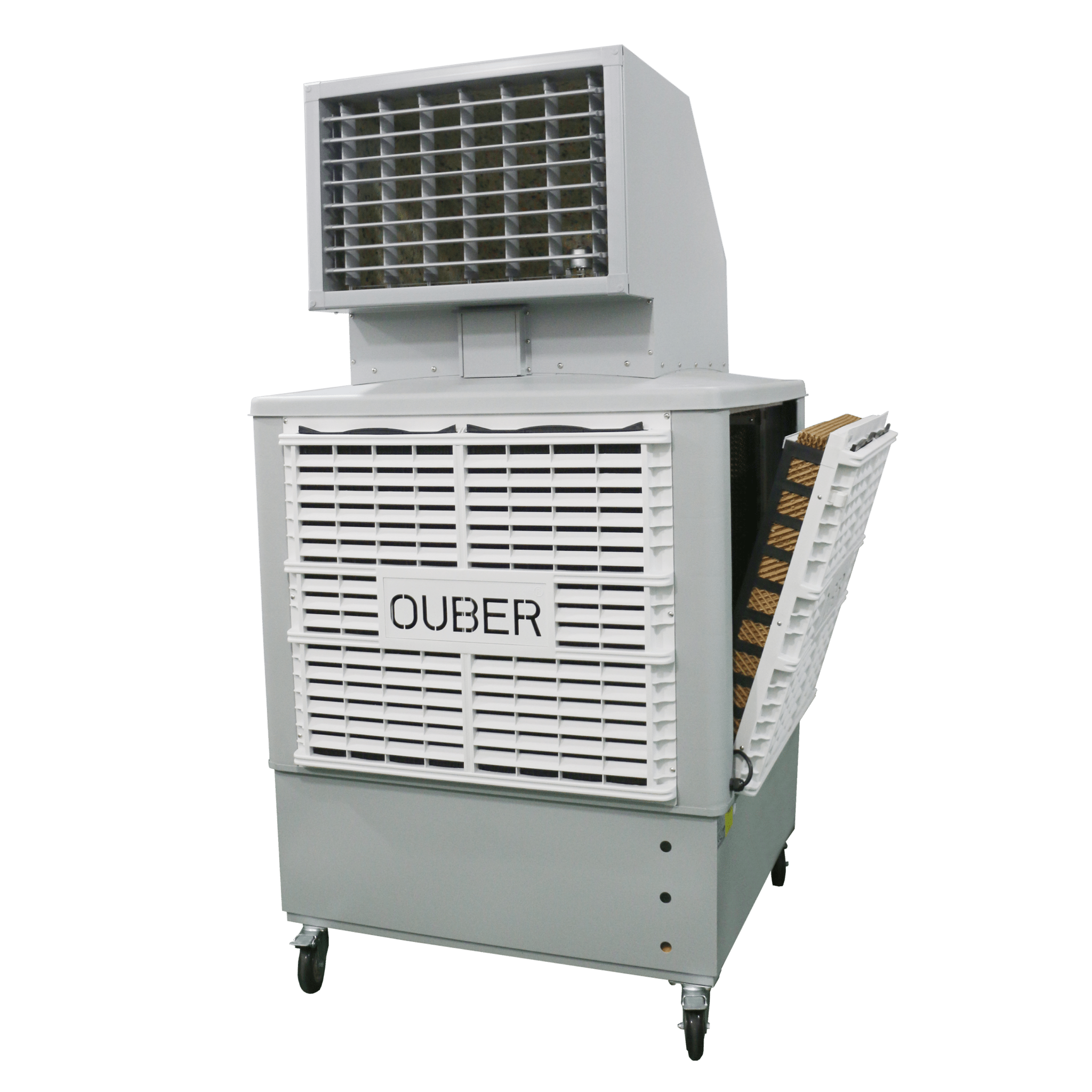

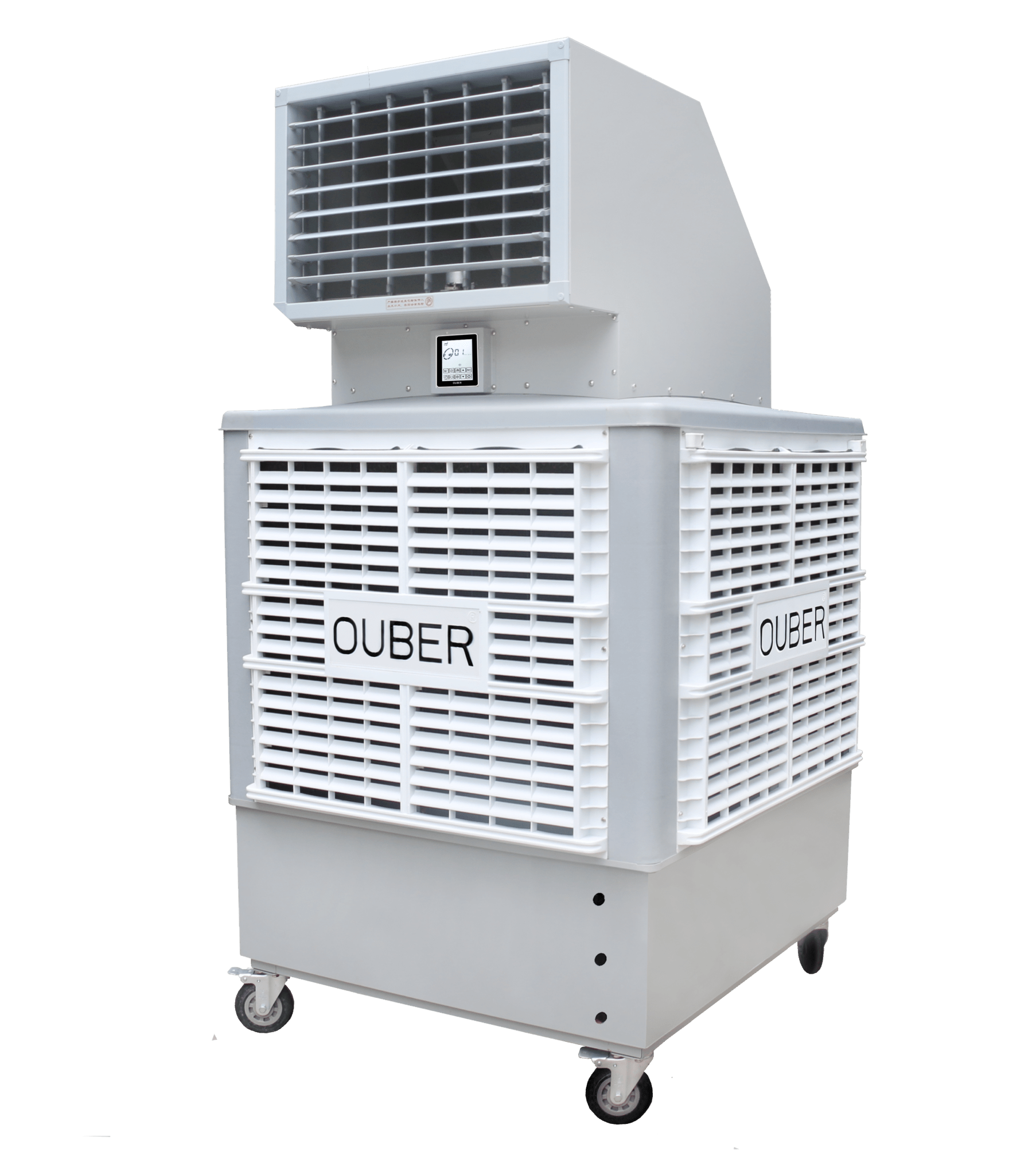

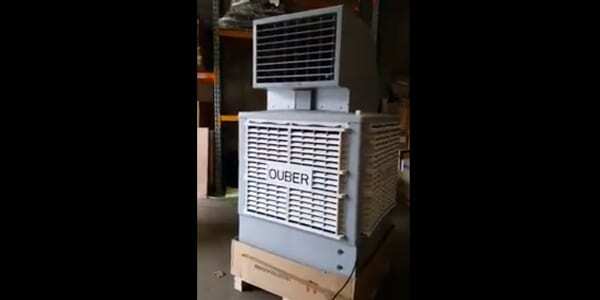

PORTABLE EVAPORATIVE AIR COOLER SINGLE DIRECTIONAL – PACISD

$4799.00

The Ouber PACISD is an industrial evaporative air cooler which utilises the natural process of using evaporation to cool the air. The PACISD uses a low wattage water pump to circulate water from the water tank on to four cooling pads, which in turn becomes very wet. The 1.1KW fan draws air from outside the unit through the damped pads. As it passes through the pads the air is cooled by evaporation. The PACISD is ideal for open areas and is capable of cooling areas of up to 150m² but is also suitable for spot cooling.

    • Single direction air outlet
    • Automatic swing louvres
    • Low power consumption
    • Variable speed
    • 4 air inlet sections
    • Remote control
    • Can be connected to a regular garden hose for continuous water supply
    • Float valve sensor
Part No. PACISD
Air Flow (L/s) 5,000
Fan Type Axial
Noise Level (dBa) < 68
Motor (K/W) 1.1
Voltage/Frequency 220~240/50
Current (A) 7.5
Plug Connection 3 Pin 10A
Cooling Area (m2) up to 150
Air Supply Distance (m) 28
Tank Capacity (L) 300
Water Consumption (L/H) 15
Fan Speed Variable
Cooling Pad Size (mm) 700*770
Cooling Pad Thickness (mm) 100
Material of Blades ABS
Material of Body PP body + Galvanised Steel Tank
Material of Cooling Pads
Weight (KG) 98 / 120
Product Dimensions (mm) 1080*1080*1940
Pack Dimensions (mm) 1080*1080*2150
  • Use clean water for longevity of unit
  • Bore water is not recommended with this unit
  • If using bore water, regular maintenance of the water pump, cooling pads & tank will be required

The Ouber PACISD is an industrial evaporative air cooler which utilises the natural process of using evaporation to cool the air. The PACISD uses a low wattage water pump to circulate water from the water tank on to four cooling pads, which in turn becomes very wet. The 1.1KW fan draws air from outside the unit through the damped pads. As it passes through the pads the air is cooled by evaporation. The PACISD is ideal for open areas and is capable of cooling areas of up to 150m² but is also suitable for spot cooling.

    • Single direction air outlet
    • Automatic swing louvres
    • Low power consumption
    • Variable speed
    • 4 air inlet sections
    • Remote control
    • Can be connected to a regular garden hose for continuous water supply
    • Float valve sensor
Weight 135 kg
Dimensions 108 × 108 × 225 cm
