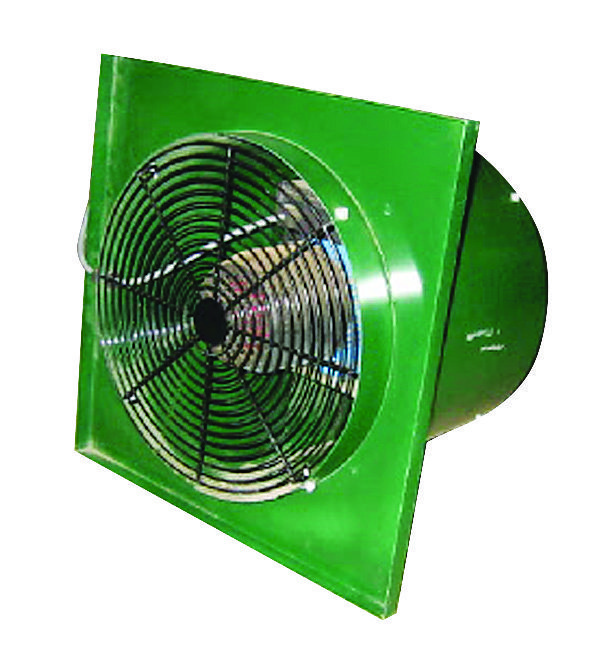

Industrial Wall Plate Exhaust Fan – IW

$1,299.00$5,588.69

Fanmaster’s Australian Made Industrial Wall Plate Exhaust Fans (IW Series) are engineered for powerful, high-performance air extraction in demanding industrial and commercial environments. Manufactured in-house (Kirrawee, NSW) from heavy-duty powder-coated steel, each unit is mounted on a welded wall plate and comes equipped with a standard IP55-rated motor, durable PPG (glass-reinforced polypropylene) blades, and safety fan guards for long-lasting operation, protection, and compliance.

These fans are ideal for removing hot air, fumes, smoke, dust, and stale air from factories, workshops, warehouses, plant rooms, and other large indoor spaces. With a wide range of sizes from 300MM to 1000MM, and available in 240V and 415V options, this range provides a durable and efficient solution for wall-mounted ventilation.

Optional fixed external louvres are available separately for installations where a non-mechanical exterior grill is required. Intrinsically safe models are also available on sizes 400MM and up for hazardous or classified environments requiring added protection.

Model Range:

  • IW3-370-4 – 300MM, 0.37KW, 240V
  • IW3-370-4-3 – 300MM, 0.37KW, 415V
  • IW4-370-4 – 400MM, 0.37KW, 240V
  • IW4-370-4-3 – 400MM, 0.37KW, 415V
  • IW5-550-4 – 500MM, 0.55KW, 240V
  • IW5-550-4-3 – 500MM, 0.55KW, 415V
  • IW6-11-4 – 600MM, 1.1KW, 240V
  • IW6-11-4-3 – 600MM, 1.1KW, 415V
  • IW8-15-4 – 800MM, 1.5KW, 240V
  • IW8-15-4-3 – 800MM, 1.5KW, 415V
  • IW10-22-8-3 – 1000MM, 2.2KW, 415V

Key Features:

  • Australian Made and manufactured by Fanmaster
  • Heavy-duty powder-coated steel wall plate
  • Standard IP55-rated motor for dust and water protection
  • PPG impeller blades for strength and airflow efficiency
  • Rear safety fan guard fitted as standard
  • Direct wall-mounted design for exhaust to atmosphere
  • Effectively removes heat, fumes, smoke, dust & stale air
  • Available in 240V and 415V motor variants
  • Sizes available: 300MM, 400MM, 500MM, 600MM, 800MM, 1000MM
  • Fixed external louvres sold separately
Part number: IW
Show more

Product Information

Specifications

Part No. Size (mm) Airflow (L/s) Motor (W) Voltage Plug Connection Fan Speed
IW3-370-4 300 425 370 240 Hard Wired 1
IW3-370-4-3 300 425 370 415 Hard Wired 1
IW4-370-4 400 1,000 370 240 Hard Wired 1
IW4-370-4-3 400 1,000 370 415 Hard Wired 1
IW4-550-4 400 550 240 Hard Wired 1
IW4-550-4-3 400 550 415 Hard Wired 1
IW5-550-4 500 2,550 550 240 Hard Wired 1
IW5-550-4-3 500 2,550 550 415 Hard Wired 1
IW6-750-4 600 750 240 Hard Wired 1
IW6-750-4-3 600 750 415 Hard Wired 1
IW6-11-4 600 4,200 1100 240 Hard Wired 1
IW6-11-4-3 600 4,200 1100 415 Hard Wired 1
IW6-15-4 600 1500 240 Hard Wired 1
IW6-15-4-3 600 1500 415 Hard Wired 1
IW8-15-4 800 1500 240 Hard Wired 1
IW8-15-4-3 800 1500 415 Hard Wired 1
IW10-22-8-3 1000 12,400 2200 415 Hard Wired 1
