Industrial Portable Fume Collector 3.0kW

$9699.00

Store Locator

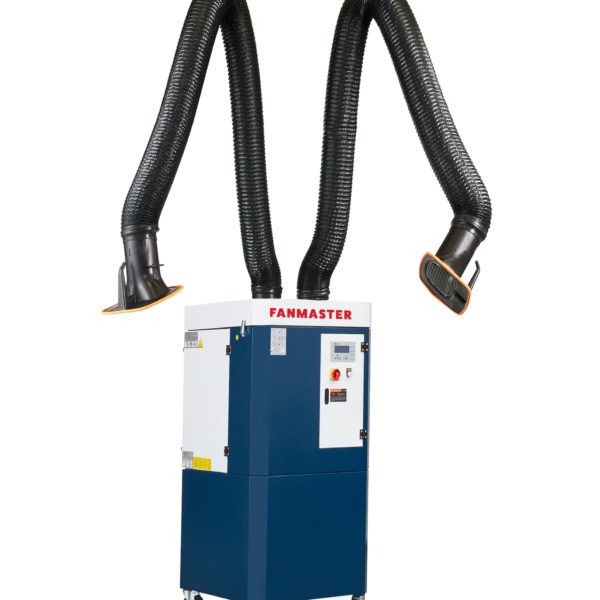

The Industrial Portable Fume Collectors are suitable for purification of fume and dust that is generated in all kinds of welding, grinding and other areas. The IPFC-30 is the largest in the range and has a filtering area of 20m2. It uses the highest standard for filtration and purification, HEPA’s filtration efficiency can capture 99.8% of particles 0.3 microns or larger. The IPFC-30 has dual suction arms that can be rotated 360°, and uses high temperature resistant, flame retardant and wearable composite material. It will not crack and has a longer usage life. Two directional and two rotary polyurethane casters with braking device are included for easy moving and stationing.

From the Blog: How Welding Fume Extractors can help sales lives!

Part No.IPFC-30
Airflow (L/s)1111
dBa <75
Motor (K/W)3.0
Voltage415
Current (A) 12.50
Plug Connection4 Pin 20amp
Filtering Area20m2
Max Pressure2800Pa
Compressed Air0.5 ~ 0.6MPa
Filter TypeHEPA
Filter Qty2
Filtration Efficiency> 99.8%
Filtering MaterialPTFE Membrane
Fume Arm3m / 160mm
Dimensions (mm)(W)800x(D)800X(H)1633
Packaging (m)(W)1000x(D)1110x(H)1900
Weight266 + 10KG

The Industrial Portable Fume Collectors are suitable for purification of fume and dust that is generated in all kinds of welding, grinding and other areas. The IPFC-30 is the largest in the range and has a filtering area of 20m2. It uses the highest standard for filtration and purification, HEPA’s filtration efficiency can capture 99.8% of particles 0.3 microns or larger. The IPFC-30 has dual suction arms that can be rotated 360°, and uses high temperature resistant, flame retardant and wearable composite material. It will not crack and has a longer usage life. Two directional and two rotary polyurethane casters with braking device are included for easy moving and stationing.

From the Blog: How Welding Fume Extractors can help sales lives!

Weight266 kg
Dimensions1110 × 1000 × 1900 m
