INDUSTRIAL DIESEL FAN HEATER 30KW SERIES 3 – IDH3-30
Stock Due: ETA Winter 2025
The Fanmaster IDH3-30 (Series 3) Industrial Diesel Fan Heater is a 30KW direct fired heater that is designed to provide an instant effective and reliable source of heat to a wide range of industrial, agricultural and commercial users.

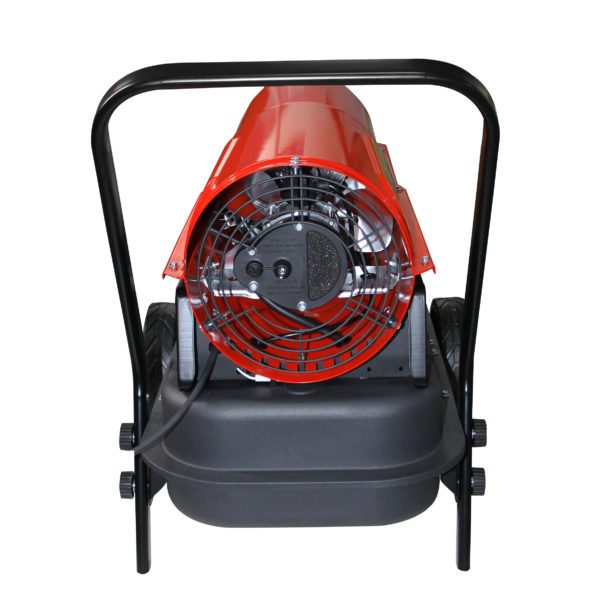

The IDH3-30 heater can run on diesel or kerosene fuel, it comes complete with an integrated fuel tank, durable wheels and heavy duty handle for mobility. The top cover design allows for easy access for maintenance and servicing.
The digital display shows room (ambient) and setting temperature which is controlled by an adjustable thermostat where you can set a predetermined temperature. When the air temperature reaches the set temperature the heater will shut off and once the ambient temperature drops below the set temperature the heater will automatically turn back on.
Ideally suited for warming well ventilated warehouses and large workshop areas, construction & building sites and drying applications.
Warranty:
Purchased pre 2023 – 1 Year
Purchased 2023 onwards – 2 Year
- Specifications
Part No. IDH3-30 Heat Output (KW/BTU) 20 / 102,360 Heating Area (m2) up to 300 Air Flow (L/s) 200 Power (W) 230 Voltage 220~240V /50Hz Current (A) 1.2 Plug Connection 3 Pin 10A Fuel Type Diesel or Kerosene Tank Size (L) 34 Consumption (L/Hr) 2.4 Continuous run time (Hr) 14 Pressure (Bar) 0.31 Fan Speed 1 Heat Settings 1 Weight (KG) 22 / 25 Dimensions (mm) W*D*H 860*520*610 Packaging (mm) W*D*H 905*420*490 Cable Length (m) 1.3 Fuel Cut Off Protection Yes Malfunction Detection Light Yes - Tips
- Check your diesel fuel is clean
- Adequate ventilation is required, try and position the heater near a roller door so its drawing fresh air in
- In colder regions you may have more issues with diesel fuel solidifying causing blockages in fuel lines and nozzles, blending a mixture of Kerosene essentially helps thin out the fuel creating less blockage
- Try not to leave your heater out in the cold after use, cover it with a tarp or blanket which will help melt the fuel lines stopping any blockages
- After winter try not to leave any diesel in the tank, use it all up and drain out of the tank and cover it with a tarp or blanket and store it away
- Maintenance is key, ensure your maintaining your heater a minimum twice a year – check, clean or replace fuel nozzle, fuel line, fuel filter, air line & air pump.
- Downloads
- Review
The Fanmaster IDH3-30 (Series 3) Industrial Diesel Fan Heater is a 30KW direct fired heater that is designed to provide an instant
The Fanmaster IDH3-30 (Series 3) Industrial Diesel Fan Heater is a 30KW direct fired heater that is designed to provide an instant effective and reliable source of heat to a wide range of industrial, agricultural and commercial users.
The IDH3-30 heater can run on diesel or kerosene fuel, it comes complete with an integrated fuel tank, durable wheels and heavy duty handle for mobility. The top cover design allows for easy access for maintenance and servicing.
The digital display shows room (ambient) and setting temperature which is controlled by an adjustable thermostat where you can set a predetermined temperature. When the air temperature reaches the set temperature the heater will shut off and once the ambient temperature drops below the set temperature the heater will automatically turn back on.
Ideally suited for warming well ventilated warehouses and large workshop areas, construction & building sites and drying applications.
Warranty:
Purchased pre 2023 – 1 Year
Purchased 2023 onwards – 2 YearWeight 25 kg Reviews
There are no reviews yet.
- Enquire about the product
- FAQ
-
What size area will this heater heat up?
It will heat an area up to 300m2.
-
Where can I use this heater?
Ideally suited for warming well ventilated warehouses and large workshop areas, construction & building sites and drying applications.
-
Do I need to service or maintain the heater?
Yes, follow the Maintenance Schedule & Logbook. Maintenance is key, ensure you are maintaining your heater a minimum two times a year.
-
