Industrial Diesel Fan Heater / Industrial Heating Cooling Ventilation Distribution Fans Warehouse Australia / Fanmaster

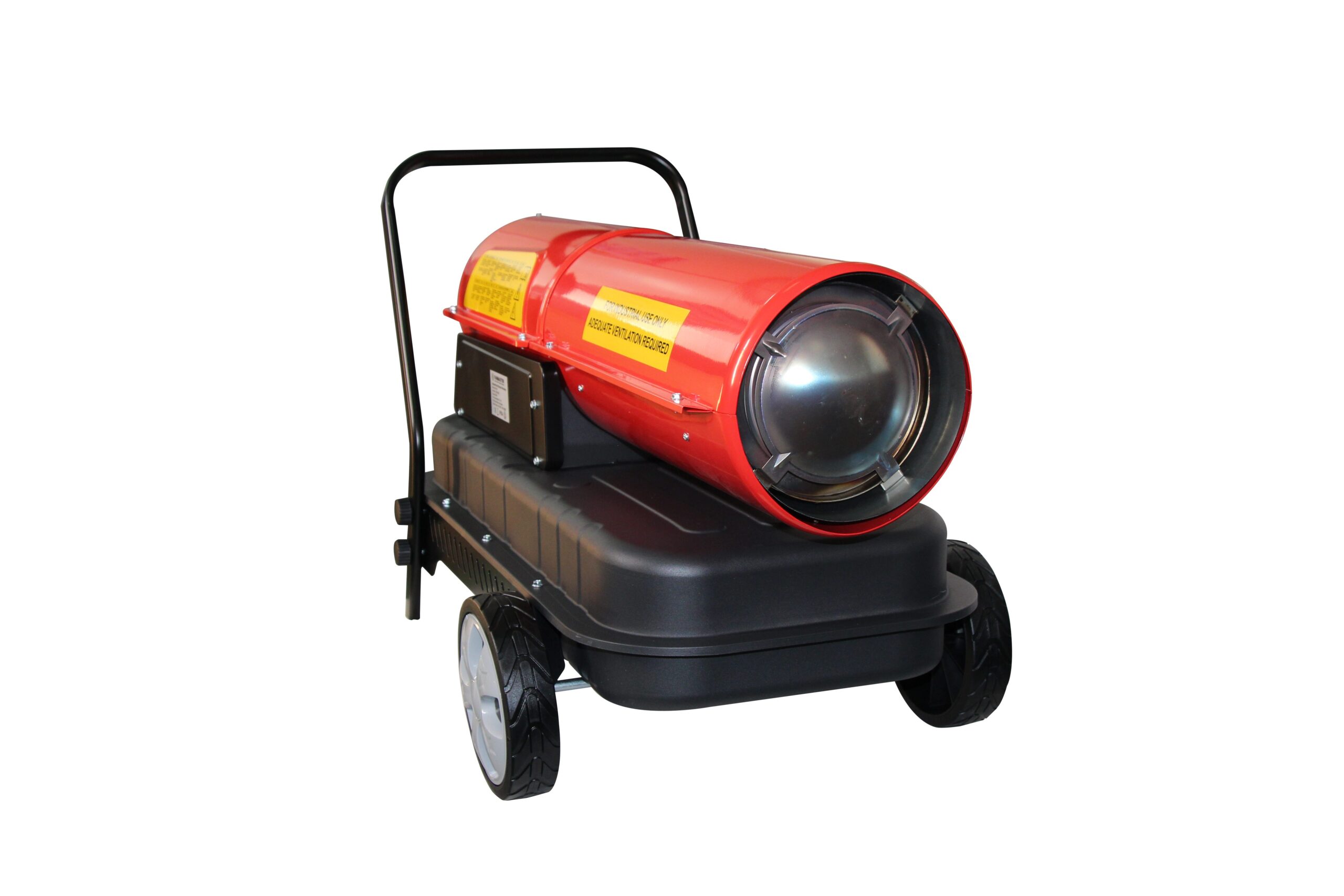

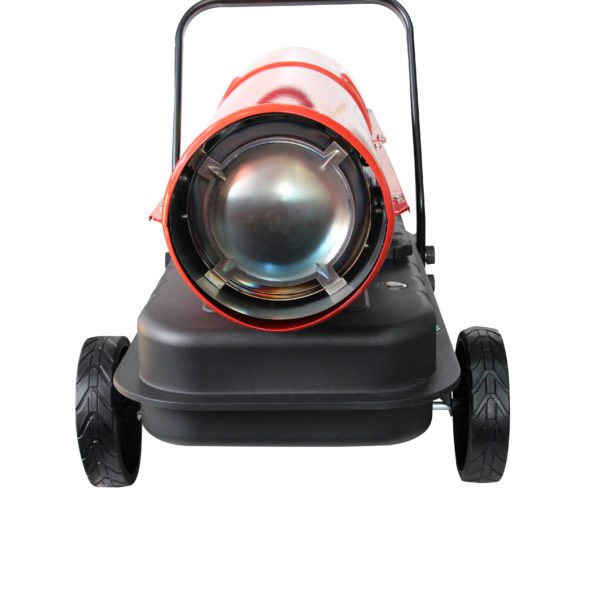

INDUSTRIAL DIESEL FAN HEATER 50KW SERIES 3

$789.00

Stock Due: May 2022

The Fanmaster IDH3-50 (Series 3) Industrial Diesel Fan Heater is a 50KW direct fired heater that is designed to provide an instant effective and reliable source of heat to a wide range of industrial, agricultural and commercial users.

The IDH3-50 heater can run on diesel or kerosene fuel, it comes complete with an integrated fuel tank, durable wheels and heavy duty handle for mobility. The top cover design allows for easy access for maintenance and servicing.

The digital display shows room (ambient) and setting temperature which is controlled by an adjustable thermostat where you can set a predetermined temperature. When the air temperature reaches the set temperature the heater will shut off and once the ambient temperature drops below the set temperature the heater will automatically turn back on.

Ideally suited for warming warehouses and large workshop areas, building applications and drying applications.

Part No.IDH3-50
Heat Output (KW/BTU)50 / 170,600
Heating Area (m2)up to 500
Air Flow (L/s)305
Power (W)340
Voltage220~240V /50Hz
Current (A)1.5
Plug Connection3 Pin 10A
Fuel TypeDiesel or Kerosene
Tank Size (L)50
Consumption (L/Hr)4.0
Continuous run time (Hr)12.5
Pressure (Bar)0.45
Fan Speed1
Heat Settings1
Weight (KG)28/32
Dimensions (mm) W*D*H1010*555*610
Packaging (mm) W*D*H1045*465*510
Cable Length (m)1.3
Fuel Cut Off ProtectionYes
Malfunction Detection LightBuilt in
  • Check your diesel fuel is clean
  • Adequate ventilation is required, try and position the heater near a roller door so its drawing fresh air in
  • In colder regions you may have more issues with diesel fuel solidifying causing blockages in fuel lines and nozzles, blending a mixture of Kerosene essentially helps thin out the fuel creating less blockage
  • Try not to leave your heater out in the cold after use, cover it with a tarp or blanket which will help melt the fuel lines stopping any blockages
  • After winter try not to leave any diesel in the tank, use it all up and drain out of the tank and cover it with a tarp or blanket and store it away
  • Maintenance is key, ensure your maintaining your heater a minimum twice a year – check, clean or replace fuel nozzle, fuel line, fuel filter, air line & air pump.

The Fanmaster IDH3-50 (Series 3) Industrial Diesel Fan Heater is a 50KW direct fired heater that is designed to provide an instant effective and reliable source of heat to a wide range of industrial, agricultural and commercial users.

The IDH3-50 heater can run on diesel or kerosene fuel, it comes complete with an integrated fuel tank, durable wheels and heavy duty handle for mobility. The top cover design allows for easy access for maintenance and servicing.

The digital display shows room (ambient) and setting temperature which is controlled by an adjustable thermostat where you can set a predetermined temperature. When the air temperature reaches the set temperature the heater will shut off and once the ambient temperature drops below the set temperature the heater will automatically turn back on.

Ideally suited for warming warehouses and large workshop areas, building applications and drying applications.

Weight32 kg
