INDUSTRIAL DIESEL FAN HEATER 50KW

Call us to know the price of the item. If you have already called us, click here to enter the price.

Refer to the Series 3 model IDH3-50

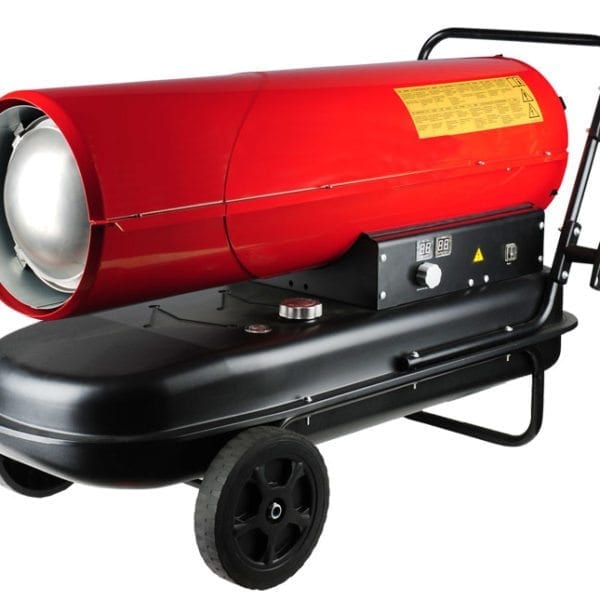

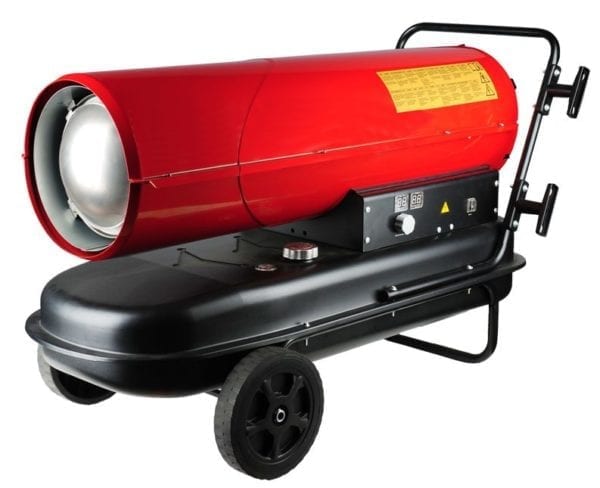

The Fanmaster IDH2-50 50KW Industrial Diesel Fan Heater is designed to provide an instant effective and reliable source of heat to a wide range of industrial, agricultural and commercial users. The unit comes complete with fuel tank and wheels for mobility. It offers an easy to use auto-ignition, fuel gauge & cord wrap with safety features such as over temperature, electrical & fuel cut offs. Ideally suited for warming warehouses and large workshop areas, building applications and drying applications. This unit must be used in well ventilated areas and is for industrial use only.

Part No. IDH2-50
Heat Output (K/W) 50
Air Flow (L/S) 305
Motor (K/W) 0.34
Voltage 240
Current (A) 1.5
Plug Connection 3 Pin 10amp
Heating Area (m2) 500
Tank Size (L) 56
Consumption (L/H) 4.0
Fan Speed 1
Heat Settings 1
  • Check your diesel fuel is clean
  • Adequate ventilation is required, try and position the heater near a roller door so its drawing fresh air in
  • In colder regions you may have more issues with diesel fuel solidifying causing blockages in fuel lines and nozzles, blending a mixture of Kerosene essentially helps thin out the fuel creating less blockage
  • Try not to leave your heater out in the cold after use, cover it with a tarp or blanket which will help melt the fuel lines stopping any blockages
  • After winter try not to leave any diesel in the tank, use it all up and drain out of the tank and cover it with a tarp or blanket and store it away
  • Maintenance is key, ensure your maintaining your heater a minimum twice a year – check, clean or replace fuel nozzle, fuel line, fuel filter, air line & air pump.

Refer to the Series 3 model IDH3-50

The Fanmaster IDH2-50 50KW Industrial Diesel Fan Heater is designed to provide an instant effective and reliable source of heat to a wide range of industrial, agricultural and commercial users. The unit comes complete with fuel tank and wheels for mobility. It offers an easy to use auto-ignition, fuel gauge & cord wrap with safety features such as over temperature, electrical & fuel cut offs. Ideally suited for warming warehouses and large workshop areas, building applications and drying applications. This unit must be used in well ventilated areas and is for industrial use only.

Weight 27 kg
