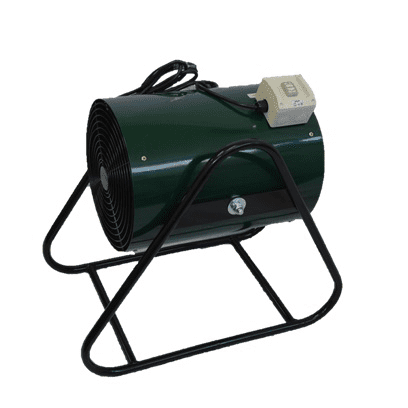

MINI MANCOOLERS 300MM – MC3

Made to order line please contact us on the below Enquire about the product form

Contact Us

The Fanmaster MC3 Mini Mancoolers are manufactured in our warehouse with quality parts and design. These units come standard with IP55 rated motors (higher ratings and intrinsically safe available) and ducting can be fitted for confined space usage. The Mini Mancoolers are best suited in factory situations and are capable of extracting dust, fumes and smoke from these environments. The Mini Mancooler fans offer a flexible and compact form of air extraction and ventilation by quickly lowering the temperature, or by directing cool air over workers in hot working areas. The Mini Mancoolers are available in both 300mm or 400mm diameter and are capable of being wall mounted.

Part No. MC3-370-4 MC3-370-4-3 MC3-550-2 MC3-550-2-3
Airflow (L/s) 600 600 1140 1140
Motor (K/W) 0.37 0.37 0.55 0.55
Pole 4 4 2 2
Voltage 240 415 240 415
Plug Connection 3 Pin 10a 4 Pin 10a 3 Pin 10a 4 Pin 10a
Fan Speed 1 1 1 1
Weight (KG) 25 25 27 27
Pack Dimensions (mm) 1200x800x700 1200x800x700 1200x800x700 1200x800x700

The Fanmaster MC3 Mini Mancoolers are manufactured in our warehouse with quality parts and design. These units come standard with IP55 rated motors (higher ratings and intrinsically safe available) and ducting can be fitted for confined space usage. The Mini Mancoolers are best suited in factory situations and are capable of extracting dust, fumes and smoke from these environments. The Mini Mancooler fans offer a flexible and compact form of air extraction and ventilation by quickly lowering the temperature, or by directing cool air over workers in hot working areas. The Mini Mancoolers are available in both 300mm or 400mm diameter and are capable of being wall mounted.

Size

300MM .37KW 240V 4P, 300MM .37KW 415V 4P, 300MM .55KW 240V 2P, 300MM .55KW 415V 2P
